Overview

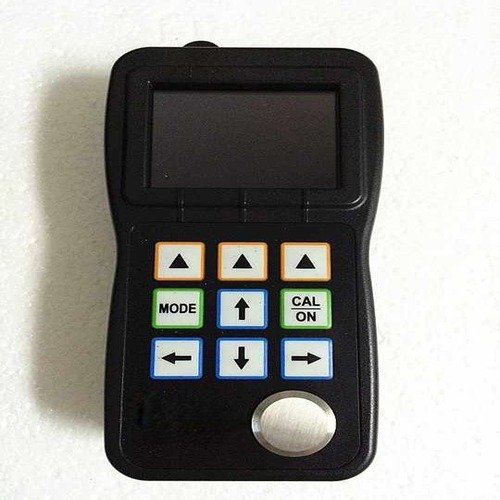

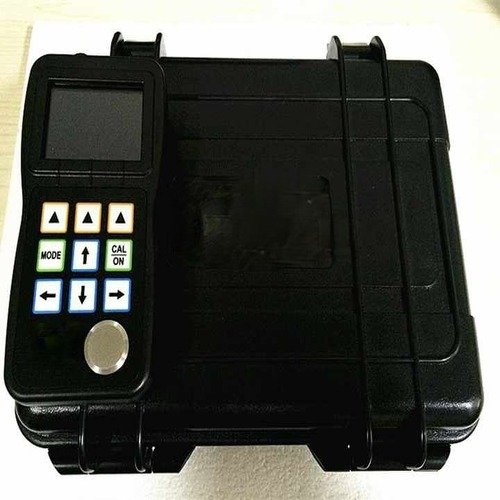

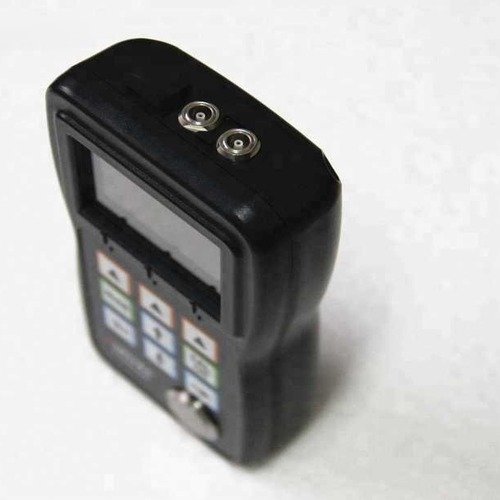

The Enviro Test Consrtuct ultrasonic paint coating thickness gauge meter is equipped with a vivid color display featuring 320 pixels x 240 pixels for detailed readings. It offers an A-Scan snapshot for in-depth analysis and an Echo-Echo mode for measurements through paint and coatings. With the ability to store up to 100,000 readings, it ensures extensive data logging, and its adjustable gain settings (Low, Medium, and High) make it adaptable to various test conditions, enhancing its versatility and reliability for precise paint thickness measurements.
Features
- Color 320 pixels x 240 pixels Display
- A-Scan Snapshot
- Echo-Echo Mode(Thru Paint & Coatings)
- Stores 100,000 Readings
- Gain: Low, Medium or High for varying test conditions
Technical Specifications
| Display Type | 2.4 in color OLED, contrast 10,000:1 |
| Measuring Range | 0.02 in to 20 in (0.60 mm to 508 mm) |
| Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz |
| MaterialVelocity Range | 500 m/s to 9999 m/s (0.02 in/us to 0.4 in/us) |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm |
| Communication Port | USB 2.0 (Full Speed ) port |
| Function | Ultrasonic |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| V-Path Correction | Automatic |
| Operating Temperature | 10 °F to 120 °F (-10°C to 50 °C) |
| Weight | 0.61 lb (280 g) |
| Size | 2.08 in x 2.99 in x 1.45 in (53 mm x 76 mm x 37 mm) |
