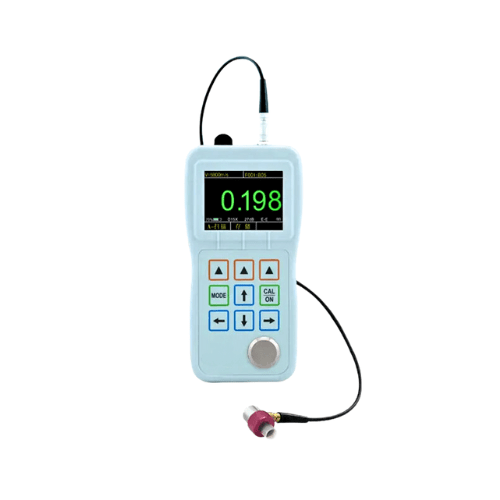

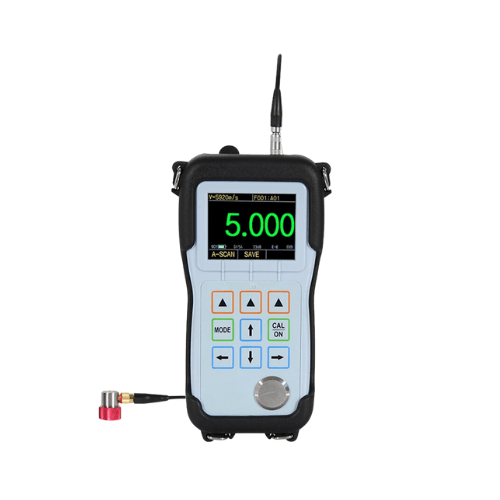

Features
- High precision, 0.001 mm resolution
- Real time A-Scan with adjustable gain, range, blanking etc
- Especially fits for ultrathin workpiece
- Accurately and reliably measure down to 0.2 mm
- Measure through coatings, e.g. coatings on the substrate
- Net thickness of the substrate
- Can be measured without removing coatings
- Unique multiple-wave verify mode
- All the thickness values been checked through 3 to 9 times of echos
- It makes the result more reliable and accurate
Technical Specifications
| Display | 2.4 QVGA (320×240) true colour OLED screen, contrast 10000:1 |
| Measurement Modes | Interface-Echo Mode(I-E) for thick material Echo-Echo Mode(E-E) for the thin material and measure through the coating Multiple Echo Verify Mode (ME-E) all the thickness values have been checked through 3 to 9 times of echo’s, which makes the result more reliable and accurate Auto Mode: the instrument select the measuring mode automatically according to the different material being tested |
| Measuring Range (steel) | Interface-Echo Mode: 0.06 in to 1.06 in (5 mm to 27 mm) Echo-Echo Mode:0.009 in to 0.53 in (0.25 mm to 13.5 mm) Multiple Echo Verify Mode: 0.009 in to 0.36 in (0.25 mm to 9 mm) Auto Mode: 0.009 in to 1.06 in (0.25 mm to 27 mm) |
| Display Mode | SCAN displays the whole RF echo or half-waveform after rectified SCAN real time B-Scan, display the profile of the workpiece Big Thickness Value: the conventional display of the thickness value Difference or Thickness thinning rate display the difference between the real thickness value and the preset thickness value, and the percentage of the thinning value Min. Or Max. Capture display the current thickness value, Min. Value and Max. Value at the same time |
| Gain | Real time continuously adjustable, adjustable range 41 dB |
| Measuring Resolution | 0.001 mm or 0.01 mm / (0.0001 in or 0.001 in) |
| Measuring Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz per second |
| Material Velocity Range | 500 m/s to 9999 m/s |
| Alarm Setting | Dynamically change the colour of thickness value when the measuring value exceeds the upper limit or lower limit of preset |
| Power | 2 AA size batteries, operating time is more than 35 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10 or 20 minutes of inactivity |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Size | 6.02 in x 2.99 in x 1.46 in (153 mm x 76 mm x 37 mm) |
| Weight | 0.61 lb (280 g including batteries) |
