Overview

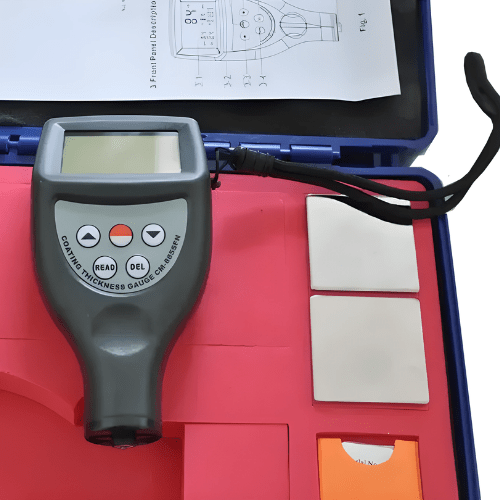

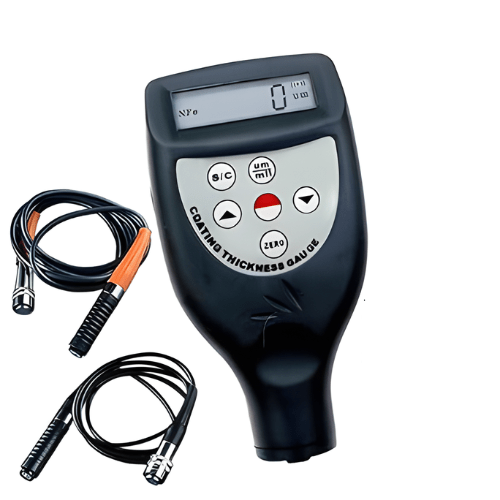

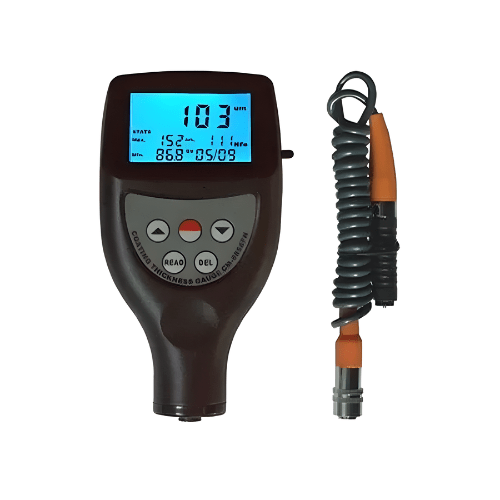

Enviro Test Consrtuct Powder coating thickness tester is highly accurate measurement device for the dry coating thickness and can be used even in harsh field conditions.
Features
- Automatic substrate recognition.
- Manual or automatic shutdown.
- Two measurement mode: Single and Continuous
- Wide measuring range and high resolution.
- Metric/Imperial conversion.
- Digital backlit display gives exact reading with no guessing or errors.
- Can communicate with PC computer for statistics and printing by the optional cable.
- Can store 99 groups of measurements.
- Statistics are available.
Technical Specifications
| Measuring Range | 0 to 1000um/0 to 40mil |
| Operating Principle | Magnetic induction/eddy current (F/NF) |
| Resolution | 0.1 um (0 um to 99.9 um), 1 um (over 100um) |
| Accuracy | +/-1-3%n or 2.5 um |
| Min. Measuring Area | 0.24 in (6 mm) |
| Min. Sample Thickness | 0.01 in (0.3mm) |
| Battery Indicator | Low battery indicator |
| Metric/ Imperial | Convertible |
| Display | 4 digits, 10mm LCD |
| Battery | 4 x 1.5V AA(UM-3) battery (not included) |
| Packing | Protective Carrying Case with Shock absorbent contoured rubber inside |
| Auto Power Off | Yes |
| Automatic Calibration | (when no other metal substrate near the probe sensor upon switching on) |
