Overview

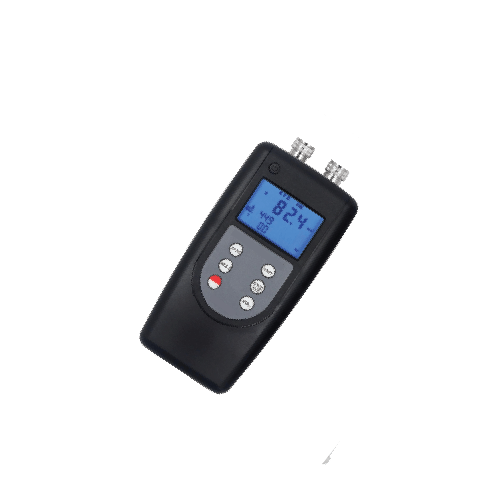

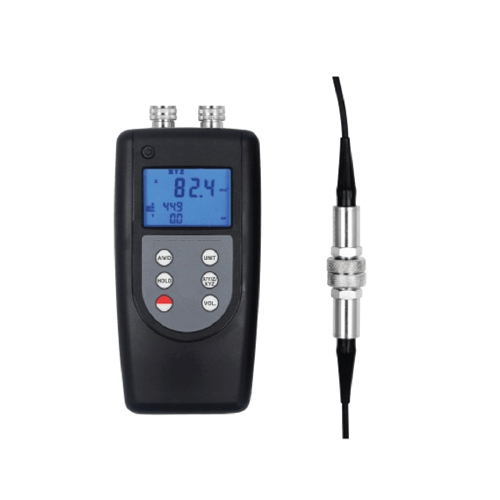

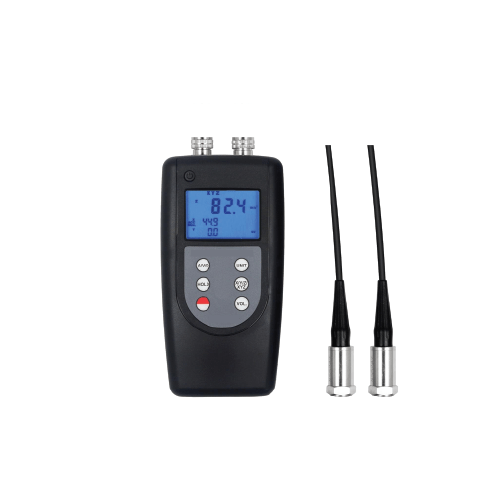

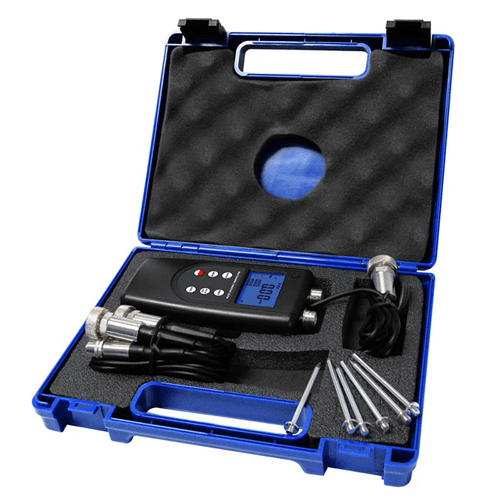

Enviro Test Consrtuct portable vibration meter Used for measuring periodic motion, to check machinery specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. It can not only show 2 same parameters in one display for 2 position measurement, but also can show 3 different parameters of velocity, acceleration and displacement in 1 display It can not only show 3 same parameters in one display for 3 position measurement, but also can show 3 different parameters of velocity, acceleration and displacement in 1 display.
Features
- Individual high-quality calorimeter for accurate and repeatable measurements
- Optional headphones for use as electronic stethoscope
- Bearing condition monitoring function
- Provide Bluetooth data output choice
- Use USB data output to connect with PC
- Wide frequency range in acceleration mode
Technical Specification
| Sensor | 2 Piezoelectric Transducers |
| Acceleration | 0.1 m/s² to 400 m/s² 0.3 ft/s² to 1312 ft/s² |
| Displacement | 0.039 in to 0.15 in (0.001 mm to 4.0 mm) |
| Acceleration | 10 Hz to 10 kHz |
| Velocity | 10 Hz to 1 kHz |
| Displacement | 10 Hz to 1 kHz |
| Accuracy | 5% of Reading+2 digits |
| Power Supply | 4 x 1.5 V AAA(UM-4) Battery |
| Standard Accessories | Powerful Rare Earth Magnet |
| Optional Accessories | Headset |
| Humidity | <90%RH |
| Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Dimensions | 5.51 in x 2.87 in x 1.37 in (140 mm x 73 mm x 35 mm) |
| Weight | 0.91 lb (415 g) |
