Overview

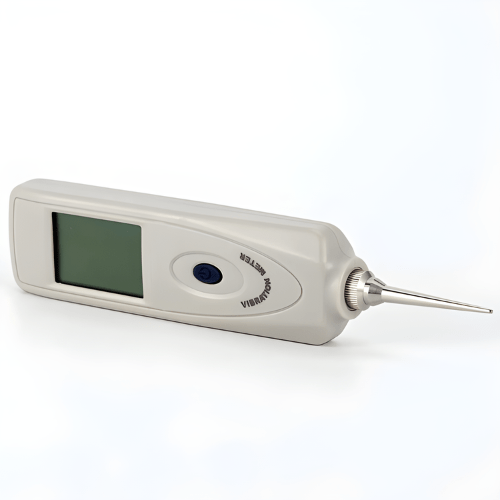

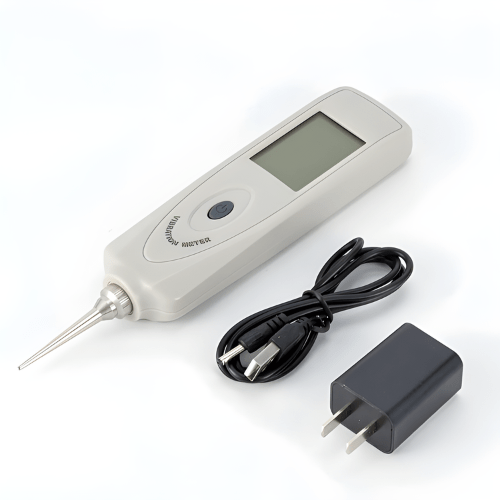

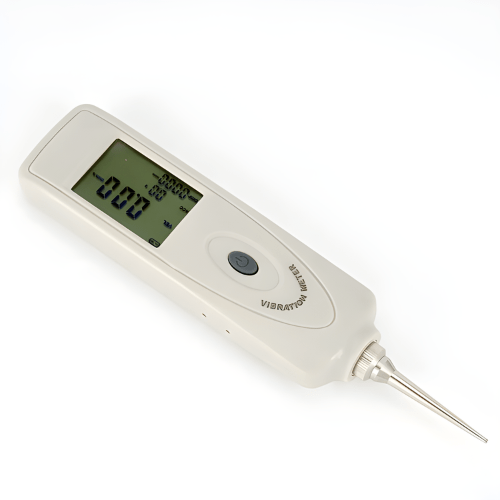

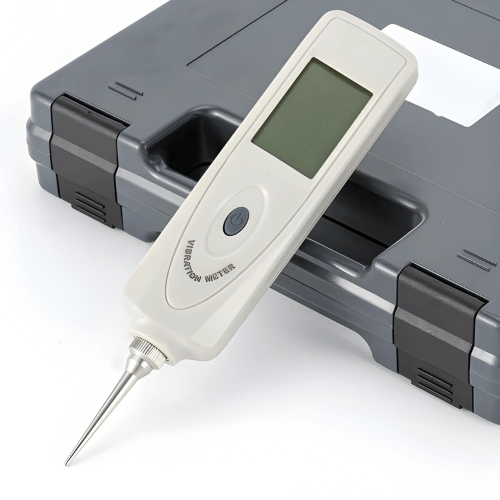

Enviro Test Consrtuct portable vibration meter is applicable to measure periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibrations. To provide the data for quality control, run time and equipment upkeep.
Technical Specifications
| Vibration Sensor | Piezoelectric Accelerometer |
| Accuracy | ±10% + 2 digits |
| Measurement Range | Velocity 0.01 mm/s to 300.00 mm/s Displacement 0.000039 in to 0.12 in (0.001 mm to 3.0 mm) |
| Frequency Range | Acceleration 10 Hz to 10 kHz Velocity 10 Hz to 1 kHz Displacement 10 Hz to 1 kHz |
| Operating Conditions | Temperature 14 °F to 122 °F (0 °C to 50 ℃) Humidity below 95% RH |
| Power Supply | Lithium Battery |
| Size | 8.0 in x 1.7 in x 0.9 in (202 mm x 43 mm x 23 mm) |
| Weight | 0.29 lb (130 g) |
