Overview

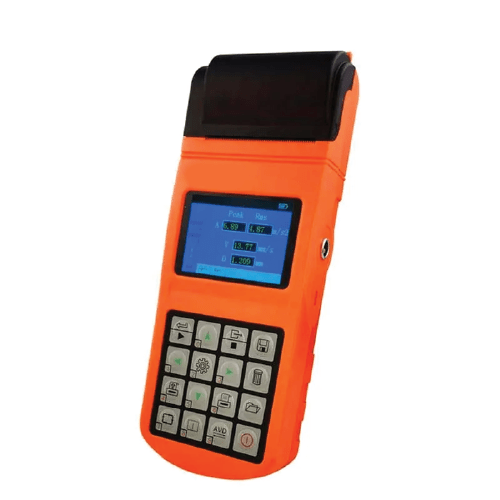

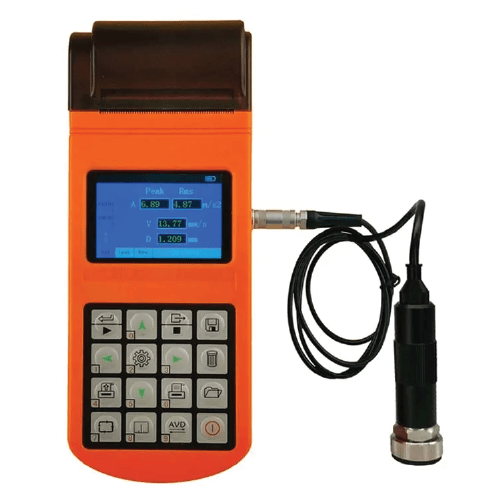

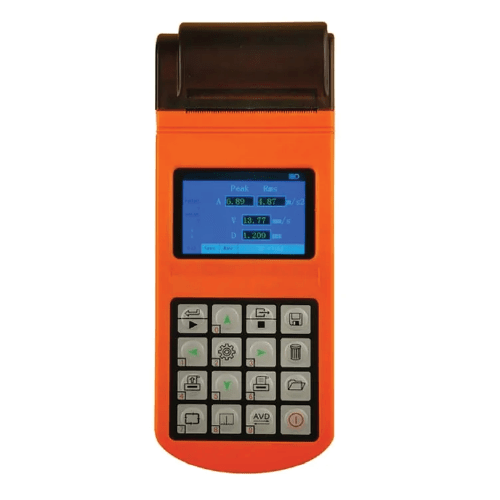

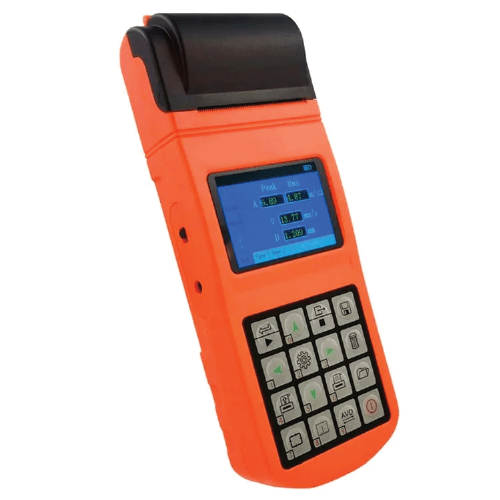

Enviro Test Consrtuct portable probe vibration meter sensor is used to convert vibration signal into electric signal. Through the processing and analysis of the input signal, the peak acceleration, RMS value of velocity (root mean square value), displacement peak – peak or real-time spectrum of vibration measurement are obtained. This product is suitable for conventional vibration measurement, especially vibration measurement in reciprocating machines. It can not only measure the acceleration, speed or displacement of vibration, but also make simple fault diagnosis and print output. Vibration measurement can measure the Peak value of acceleration, the effective value of velocity (RMS) and the Peak value of displacement (peak-peak). At the same time, the dynamic measurement bar chart is displayed in real time.
Features
- Speed measurement can be equipped with photoelectric sensor to directly measure rotor speed
- Data storage capacity storage
- The alarm output can set the upper limit warning value

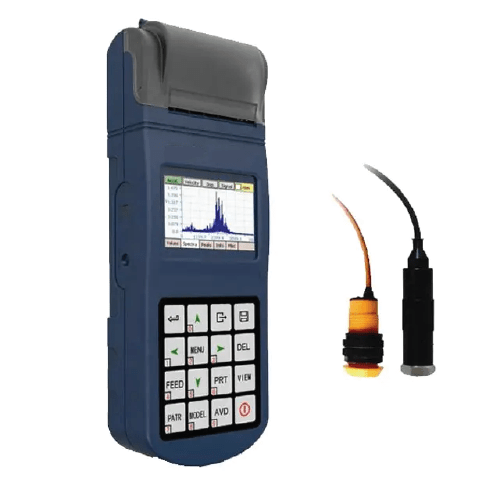

- The data analysis has the function of spectral measurement
- Data communication mini-USB interface
- The battery is built with high performance lithium battery
- Make it easy for users to record key data in real time
Technical Specification
| Analysis frequency interval | 0.25 Hz |
| Speed measurement range | 30 rpm to 300000 rpm |
| Permissible error in speed measurement | ± (0.05% + 1) |
| Speed measurement distance | 5.90 in to 39.37 in (0.15 m to 1 m) |
| Humidity range | ≤80%RH |
| display | TFT Colour LCD screen,320 × 240 pixel |
| Storage capacity | 8,000 data sets and 100 spectral images (100 measurement points) |
| Upper computer software | Optional |
| Frequency range | 10 Hz to 200 Hz |
| Allowable vibration measurement error | ±5% |
| Temperature range | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Machine weight | 0.70 lb (320 g) |
| external dimension | 8.34 in x 3.14 in x 1.37 in (212 mm × 80 mm × 35 mm) |
