Overview

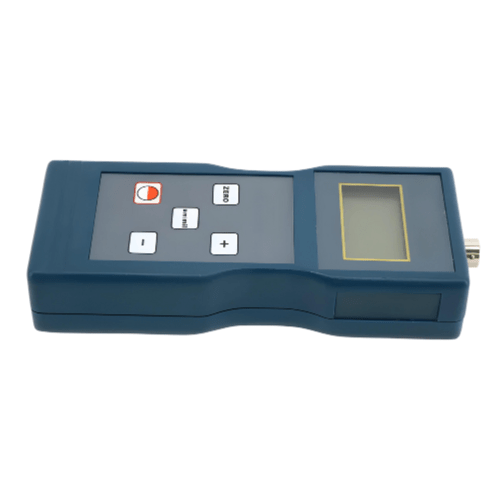

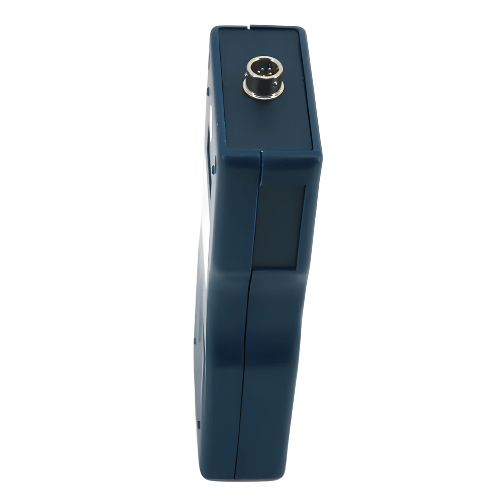

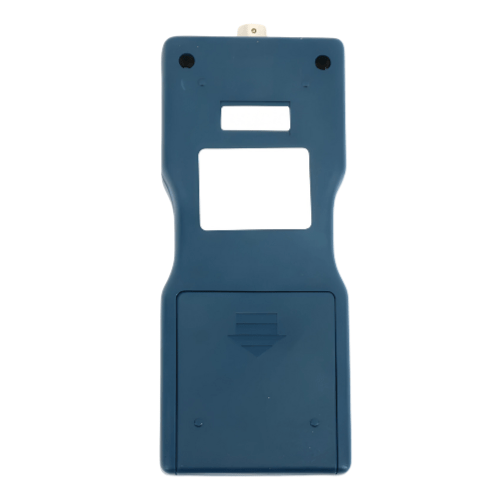

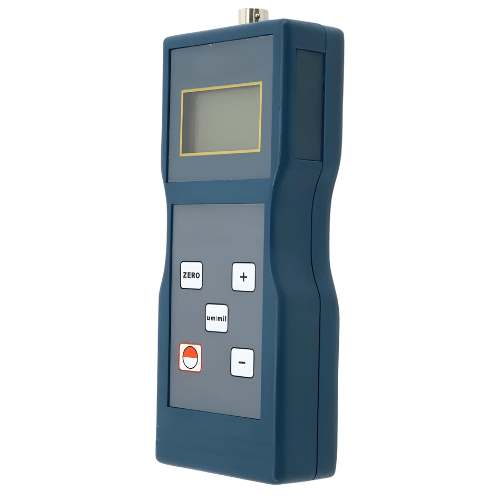

Enviro Test Consrtuct Portable Coating Thickness Gauge can quickly, accurately, and non-destructively measure the thickness of coatings and coatings; it can be used in engineering sites or in laboratories. Through the use of different probes, it can meet a variety of measurement needs; it is widely used in manufacturing Industry, metal processing industry, chemical industry, commodity inspection and other testing fields;
Features
- Two measuring methods: magnetic induction (F) and eddy current (N)
- Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects)
- Metric/imperial system selectable
- Manual or automatic shutdown
- Automatic memory of calibration value, and automatic recognize the substrate
- Operation process have buzzing reminder, while no buzzing in continuous mode
Technical Specifications
| Principle | F Magnetic Induction & NF Type Eddy Current |
| Range | 0 um to 1 000 µm/0 mil to 4 0 mil |
| Resolution | 0.1 µm/1 µm |
| Accuracy | ±1 to 3%n or ±2.5 µm |
| Min.Radius Workpiece | F Type: convex 0.06 in (1.5 mm)/concave 0.98 in (25 mm) |
| Min.Measuring Area | NF Type: convex 0.12 in (3 mm)/concave 1.97 in (50 mm) |
| Min.Sample Thickness | 0.24 in (6 mm) |
| Metric/Imperial | 0.01 in (0.3 mm) |
| Battery Indicator | Convertible Low Battery Indicator |
| Automatic Power Off | √ |
| Operating Conditions | Temperature:32 °F to 122 °F (0 ºC to 50 ºC) Humidity: <80% RH |
| Power Supply | 4 x1.5 V AA (UM- 3) Battery |
| Dimensions | 6.34 in x 2.72 in x 1.26 in (161 mm x 69 mm x 32 mm) |
| Weight | 0.55 lb. (250 g) (Not Including Batteries) |
