Overview

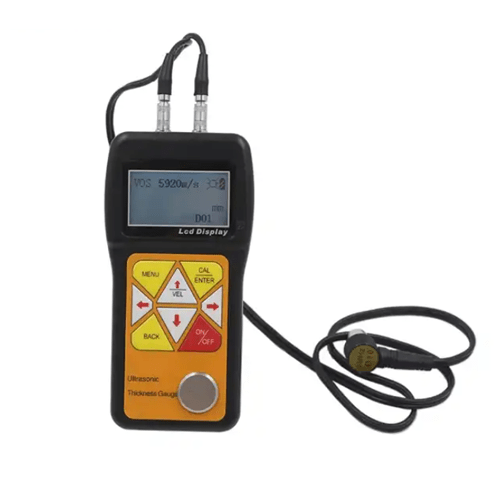

Enviro Test Consrtuct portable coating thickness gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected from the other face. The gauge can provide quick and accurate measurements to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during use. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Features
- Capable of performing measurements on a wide range of materials
- Can collocate variety different frequencies, wafer sizes of probes
- Sound Velocity Calibration function as a known
- Coupling status indicator showing the coupling status
- Have the battery indicator function
- Can real-time display the remaining power
- Auto sleep and auto power off function to conserve battery life
- Smart, portable, high reliability, suitable for bad environment
Technical Specifications
| Display | 128 pixels x 64 pixels LCD with LED backlight |
| Measuring Range | 0.029 in to 23.62 in (0.75 mm to 600 mm) (Steel) |
| Velocity Range | 1000 m/s to9999 m/s |
| Resolution | 0.0003 in (0.01 mm) |
| Measuring accuracy | ±(0.5% H 0.001 in (+0.04 mm)) |
| Measurement cycle | Single point measurement 6 times/per |
| Calibration Function | Zero calibration and two-point calibration |
| Storage | 40 values of saved data |
| Language | English |
| Power Source | 2 pcs 1.5 V AA size |
| Working Time | more than 50 hrs (LED backlight off) |
| Outline Dimensions | 5.7 in x 2.9 in x 1.2 in (145 mm x74 mm x 32 mm) |
| Weight | 0.54 lb (245 g) |
