Overview

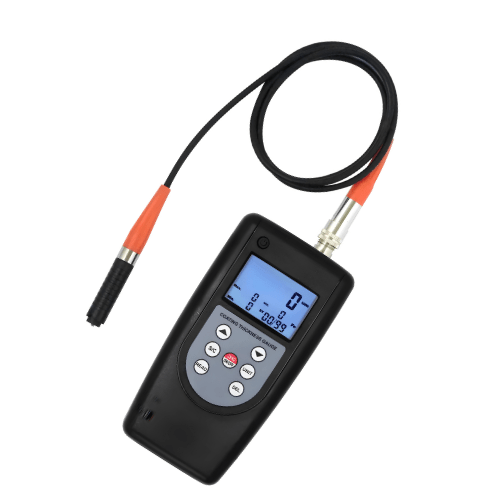

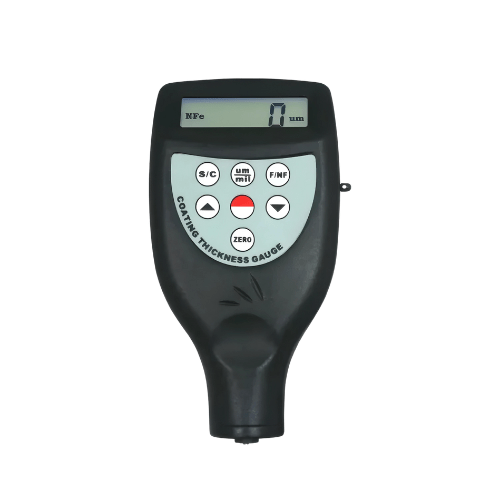

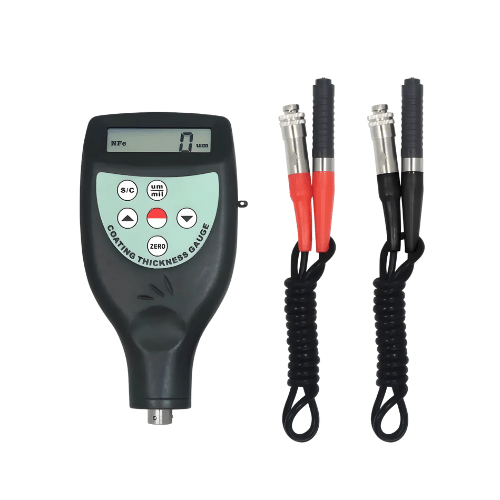

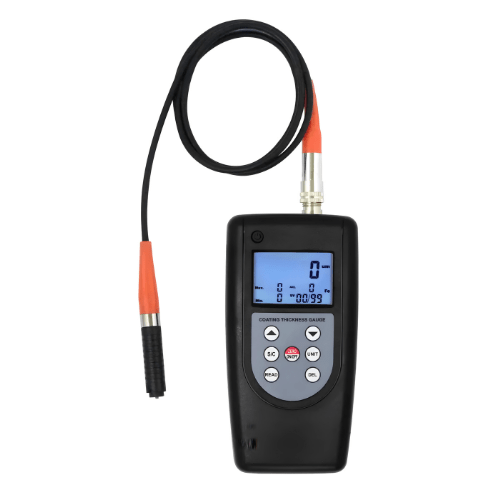

Enviro Test Consrtuct Micro Coating Thickness Meter measures the thickness of nonmagnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
Features
- Specially for the thickness measurement of coating on small workpiece
- Measuring methods: magnetic induction (F)
- Two measurement mode: Single and Continuous
- Coating thickness of curved objects and tiny objects
- Metric/imperial system selectable
- Manual or automatic shut down
- Auto memory of calibration value,and auto recognize the substrate.
- Operation process have buzzing reminder,while no buzzing in continuous mode.
- Use “USB data output” and “RS-232 data output” to connect with PC
- Provide BT data output choice.
- Separate Type, measurements can be more flexibility
Technical Specifications
| Operating Principle | Magnetic Induction (F) |
| Measuring Range | 0 to 200 um / 0 to 8 mil |
| Resolution | 0.1 um |
| Min. Radius Workpiece | convex 2 mm / concave 4 mm |
| Min. Measuring Area | 2 mm |
| Min. Sample Thickness | 0.1 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 5.5 in x 2.8 in x 1.3 in (140 mm x 72 mm x 34 mm) |
| Weight | 215 |
