Overview

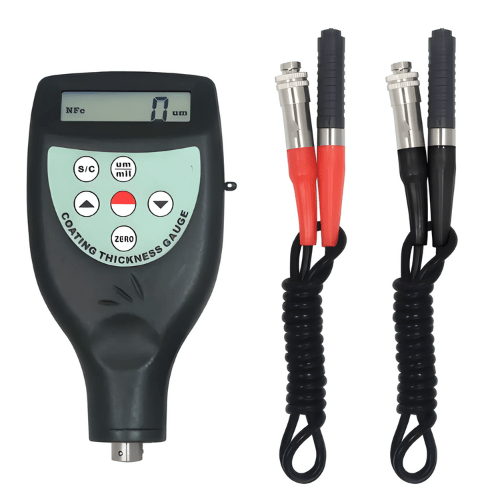

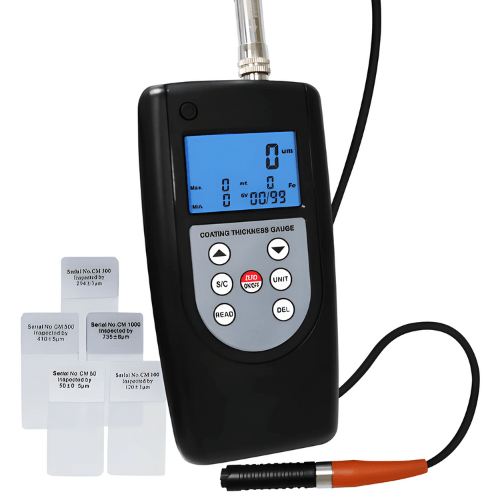

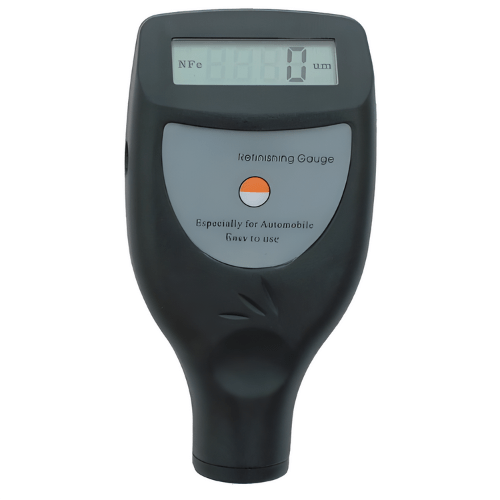

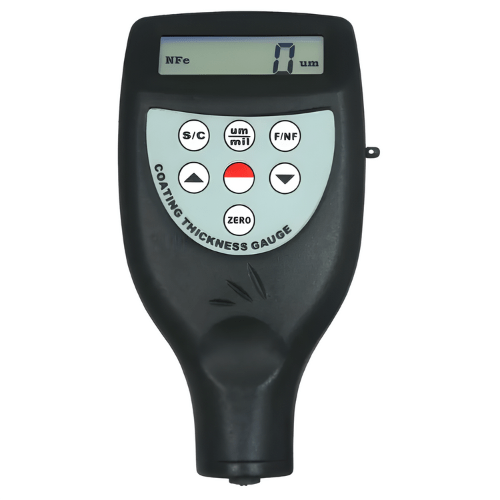

Enviro Test Consrtuct micro coating and material thickness gauge measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, Nickle etc.). often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
Features
- Metric or imperial system selectable
- Manual or automatic shutdown
- Auto memory of calibration value, and auto recognize the substrate
- The operation process has buzzing reminder
- While no buzzing in continuous mode
- Use “USB data output” and “RS-232 data output” to connect with PC
- Provide BT data output choice
- Separate Type, measurements can be more flexibility
Technical Specifications
| Operating Principle | Magnetic Induction (F) |
| Measuring Range | 0 um to 200 um or 0 mil to 8 mil |
| Resolution | 0.1 um |
| Min. Radius Workpiece | Convex 0.08 in (2 mm) or concave 0.16 in (4 mm) |
| Min. Measuring Area | 0.08 in (2 mm) |
| Min. Sample Thickness | 0.004 in (0.1 mm) |
| Accuracy | ± 1 to 3%n or ± 2.5 um |
| Metric or Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0 °F to 104 °F (0 °C to 40 °C), Humidity 10% RH to 90% RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 5.5 in x 2.8 in x 1.3 in (140 mm x 72 mm x 34 mm) |
