Overview

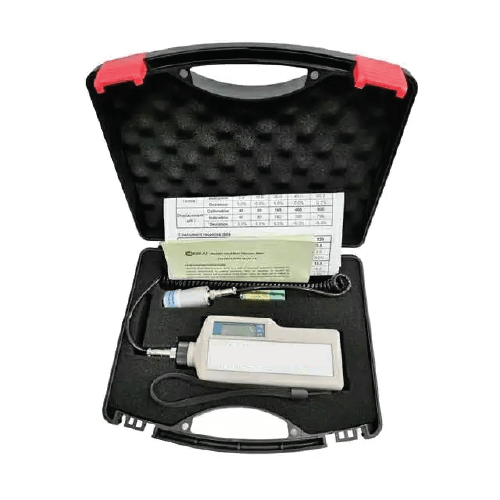

Enviro Test Consrtuct display digital vibration meter Handheld Vibration meter is a kind of integrated, pocketsize instrument for vibration measurement of rotating machinery. With the capability to measure the displacement, velocity and acceleration of the objects easily, the meter can be applied in industry departments such as electric power, petroleum, chemical engineering and metallurgy to meet different occasions Press the MEAS button and observe the display. If a battery mark appears on the display (left side), replace the battery with new one. If not, the meter is ready for measuring. Select the acceleration, velocity or displacement measurement mode with the mode selector. The arrow on the right of the display indicates the selected mode.
Features
- Vibration measurement range
- Low voltage indication
- Ambient conditions operation
- Magnet to the object’s Vibration vertical cross-section
- Link of the sensor insert the input socket of the sensor
- The arrow on the right of the display indicates the selected mode
Technical Specification
| Vibration Displacement | 0 um to 1999 um |
| Displacement | 10 Hz to 200 Hz |
| Velocity | 10 Hz to 500 Hz |
| Acceleration | 10 Hz to 1000 Hz |
| Displacement | 0 um to 20 um: ±10% |
| Acceleration | 0 m/s2 to 2.0 m/s2 |
| Power | 9 V |
| Low voltage indication | If battery voltage <5.5 V, |
| Battery life | approx. 25 h under continuous use |
| Atmosphere pressure | 75 kpa to 106 kpa |
| Humidity | ≤80% |
| Weight | 0.77 lb (350 g) |
| Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Dimension | 7.28 in x 2.67 in x 1.18 in (185 mm × 68 mm × 30 mm) |
