Features
- High quality and precision.
- With 2 probes (Standard probe and Angle probe).
- Integrated with a 4mm calibration block.
- Two display units: mm and inch.
- With coupling state indication.
- Measuring sound velocity: according to the known thickness of the object,
- sound velocity of it can be measured directly.
- Software for PC connection and data transmission, analysis.
- 3 years warranty and life-long services
Technical Specifications
| Measuring range | 0.03 in to 13.78 in (0.75 mm to 350 mm) (depend on probes) |
| Resolution | 0.0004 in (0.01 mm) |
| Accuracy | ±(0.5%H+0.01) H refers to the thickness of testing piece |
| Velocity range | 1000 m/s to 99999 m/s |
| Storage | 2000 Groups |
| Shell | Plastic |
| Operating Temperature | +10 °F to 140 °F (-10 ℃ to 60 ℃) |
| Dampness | 20% to 90% |
| Power supply | 2 x AA |

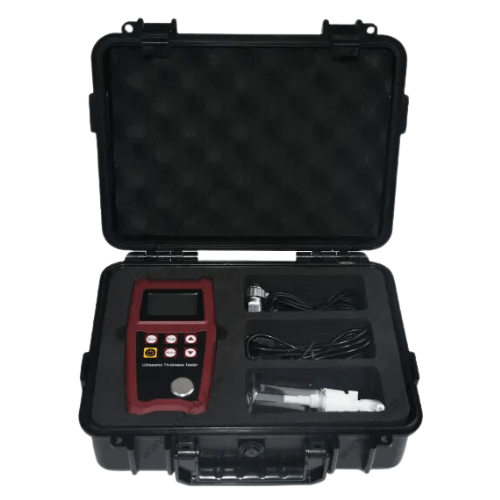

| Standard Configuration | Main unit, Standard probe x1(5P∅10), Angle probe x1 (90°, 5P∅10), Users’ Manual, Qualified certificate, coupling agent x1, PC software, AA alkaline battery*2, Packing list, Warranty card |
