Overview

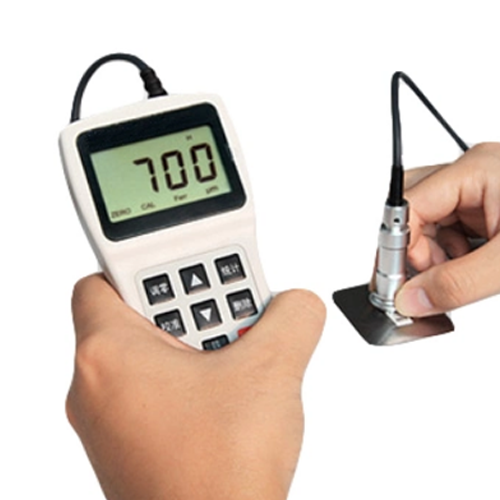

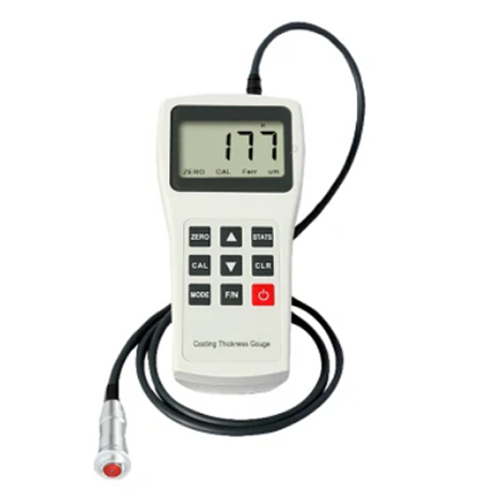

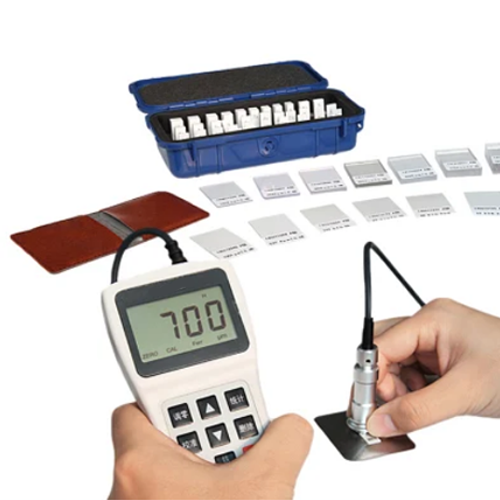

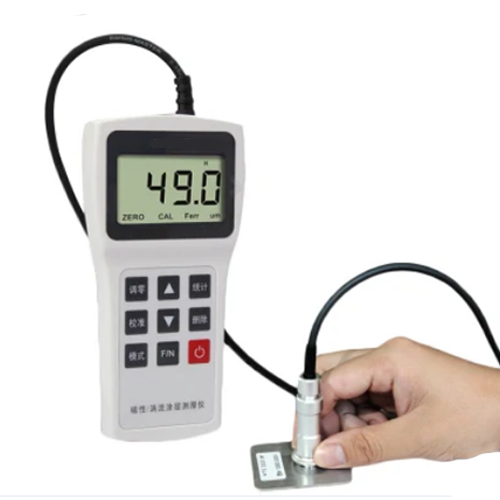

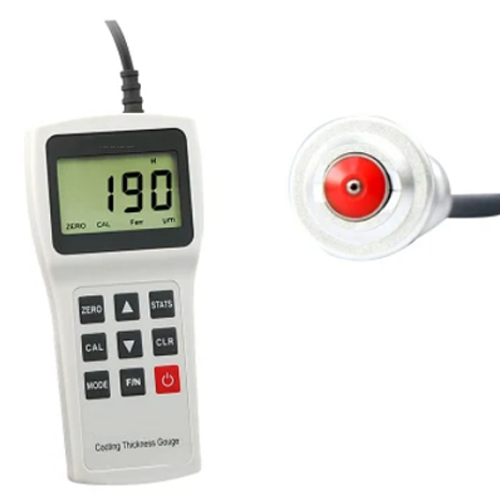

Enviro Test Consrtuct Digital Car Paint Coating Thickness Gauge is a portable and easy-to-use device for measuring the thickness of paint coatings on vehicles. It provides accurate and non-destructive measurements, with dual measurement modes for different surfaces. The gauge offers high precision and may include data storage capabilities for easy review. It is commonly used in automotive workshops and inspection centers to assess paint quality.
Feature
- Non-destructive testing method
- High precision and accuracy
- Dual measurement modes for different surface types (ferrous and non-ferrous)
- Portable and user-friendly design
- Data storage for easy retrieval of measurements
- Ideal for assessing paint quality on vehicles
Technical Specifications
| Measuring range(um) | 0 to 10000 , Low resolution |
| Test Conditions | Minimum radius of curvature(mm) 0.3937 in (10 mm) The smallest area of the diameter(mm) 1.5748 in (40 mm) Matrix critical thickness(mm) 0.0787 in (2 mm) |
| Indication error(um) | ±(2%H+10) |
| Display | High contrast segment code LCD screen (LED backlight) |
| Statistical function | The number of measurements, the maximum, the minimum, the average, the standard deviation |
| Calibration method | Zero-point, one point, two points calibration |
| Operating temperature | 14 °F to 122 °F (to10 ℃ to +50 ℃) |
| Automatic shut-down | 3 minutes after no operation automatically shut down |
| Power supply | Two 1.5V AA batteries, when the battery power is low, there is a low voltage prompt |
| Weight | 0.4409 lb. (200 g) |
| Size | 5.8661 in x 2.874 in x 1.2598 in (149 mm x 73 mm x 32 mm) |
