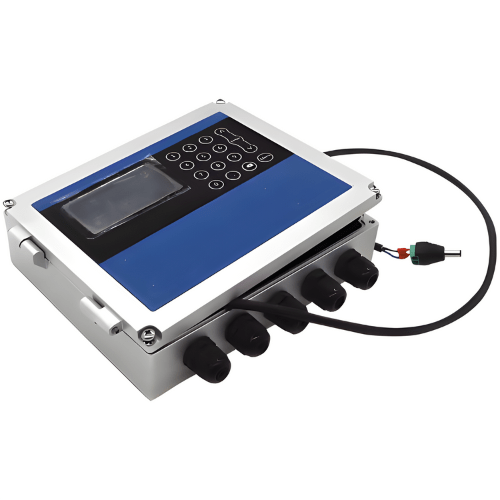

Enviro Test Construct Wired Sensor Clamp Flow Meter

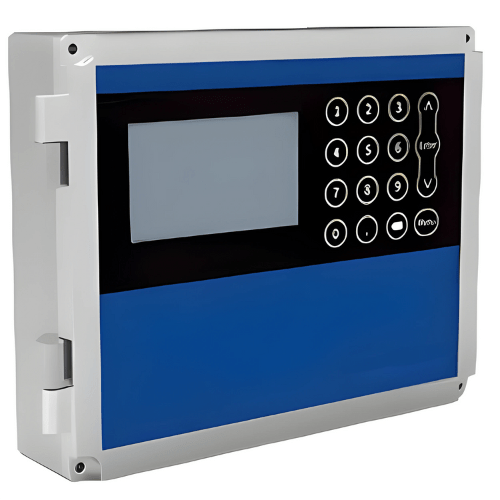

Enviro Test Construct Wired Sensor Clamp Flow Meter - Image 2

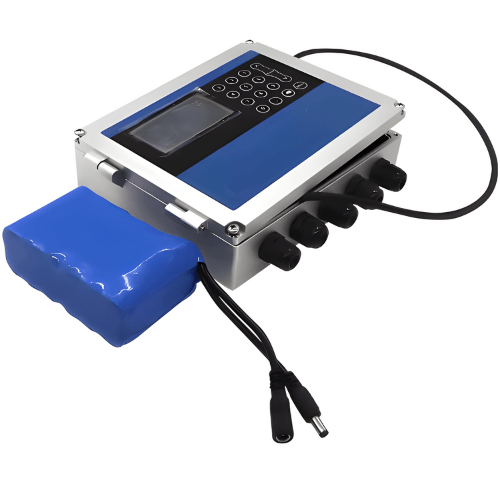

Enviro Test Construct Wired Sensor Clamp Flow Meter - Image 3

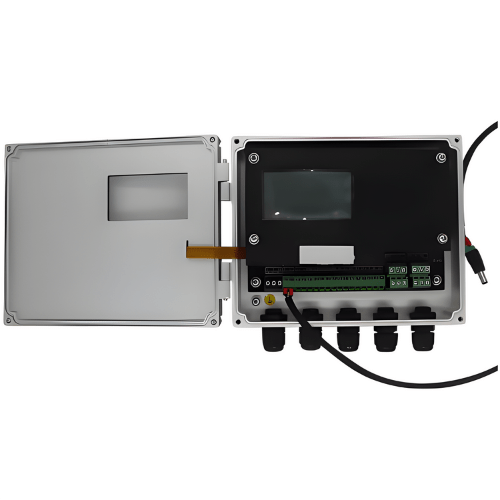

Enviro Test Construct Wired Sensor Clamp Flow Meter - Image 4

Enviro Test Construct Wired Sensor Clamp Flow Meter

This Wired Sensor Clamp Flow Meter has an accuracy of ± 1 %, linearity of ± 1 %, relative humidity of up to 99 % and repetition accuracy of 0.2 %.

SKU: ETCWCM-105 Category:

Features

  • Time difference measurement
  • Two kinds of sensors to choose from
  • HD large screen display
  • Ultrasonic heat (cold) meter



Technical Specifications

Measuring range± 0.03 m per second to ± 5 m per second
Accuracy± 1 %
Repetition accuracy0.2 %
Linearity± 1 %
Pipe diameter0.9 in to 55.1 in (25 mm to 1400 mm)
MediumWater
Output signalAnalog output 4 mA to 20 mA, maximum load 750 Ω, pulse output 0 K KHz to 10 K KHz
Communication functionRS 232 or RS 485 MODBUS
Power supply10 V to 36 V DC or 1 A, 90 V to 245 V AC
TemperatureConverter -4 °F to 140 °F (-20 °C to +60 °C), sensor -40 °F to 176 °F (-40 °C to 80 °C)
HumidityUp to 99 % RH, non-condensing
ConverterAluminum, IP 56
