Overview

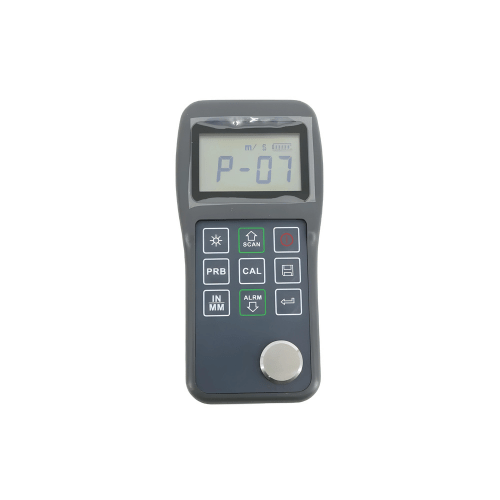

Enviro Test Consrtuct LCD measuring range is capable of measuring the thickness of various materials, such as metal, plastic, ceramic, glass and many other good ultrasonic conductors. It has all kinds of materials. Compared with the traditional measurement methods, the advantages of ultrasonic thickness gauge are exposed to one side of the workpiece to complete the measurement.
Features
- Suitable for measuring metal
- Dual straight beam probes
- Zero calibration and two point calibration
- Auto sleep and auto power off function
- High reliability for harsh operating environment
Technical Specifications
| Display | 4.5 digits LCD with EL backlight |
| Measuring Range | 2.9 in to 11.8 in (0.75 mm to 300 mm) |
| Sound Velocity Range | 3280.8 ft/s to 32805.1 ft/s (1000 m/s to 9999 m/s) |
| Weight | 0.5 lb (245 g) |
| Accuracy | ± (0.5% + 0.15 in ± (0.5% + 0.04 mm) |
| Resolution | 0.03 in (0.1 mm) |
| Operating Time | More than 100 hours |
| Outline Dimensions | 5.9 in x 2.9 in x .2 in (150 mm × 74 mm × 32 mm) |
| Power Source | 1.5 Volt alkaline batteries |
