Overview

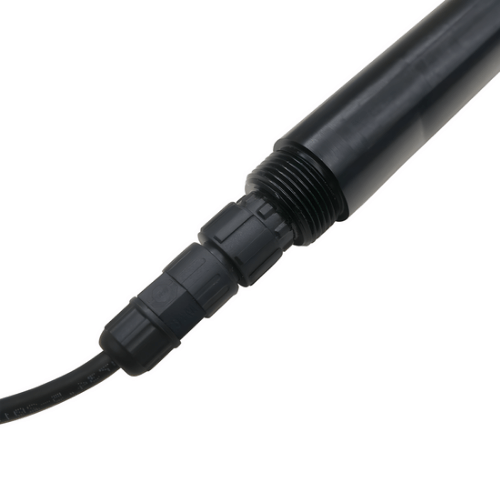

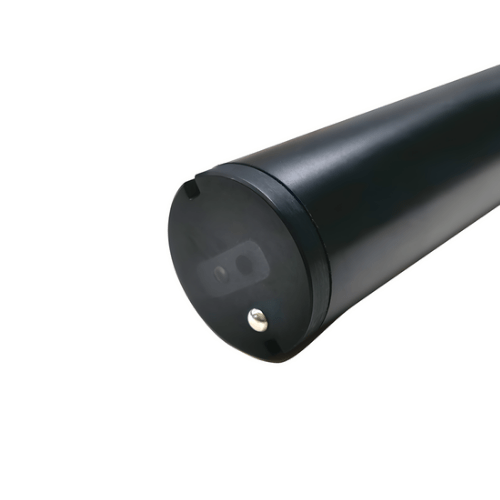

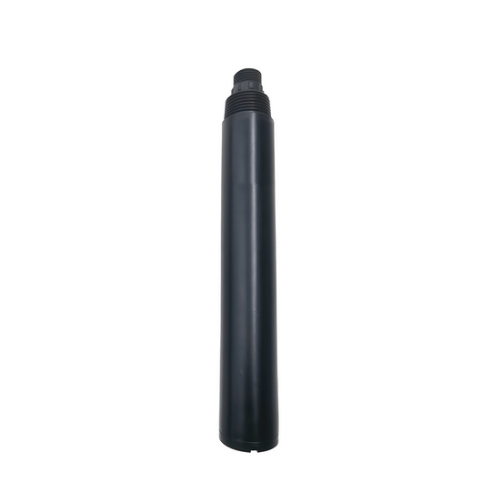

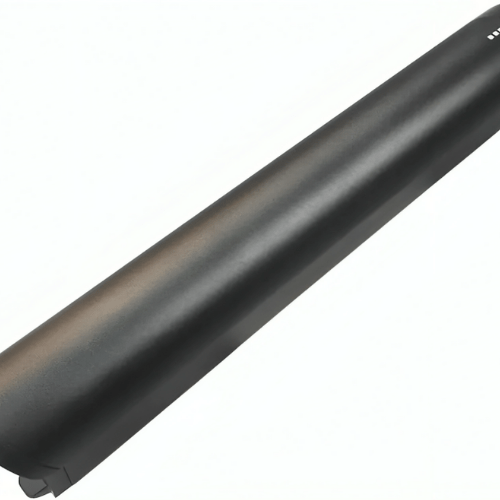

Enviro Test Construct Water Turbidity Sensor is designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light is incident on a water sample, the light is scattered by the turbidity substance in the water sample and the intensity of the scattered light in the direction perpendicular to the incident light is measured and compared with the internal calibration value to calculate the turbidity in the water sample. Degree, linearized to output the final value.
Features
- 90° angle scattered light principle, built-in temperature sensor
- Support RS-485, Modbus/RTU protocol
- Optical fiber structure, strong resistance to external light interference
- Infrared LED light source with high stability
- IP68 protection, water depth within 20 meters
- Convenient, fast, stable, and easy to maintain
Technical Specifications
| Measuring Principle | Scattering light method |
| The Range | 0 to 1000 NTU or 0 to 200 NTU |
| Resolution | 0.1 NTU, 32.1 °F (0.1℃) |
| Accuracy | ±5% or ±3 NTU (0 to 1000 NTU) ±3% or ±2 NTU (0 to 100 NTU) ±32.9 °F (0.5 ℃) |
| Temperature Compensation | Automatic temperature compensation (Pt 1000) |
| Output Mode | RS-485 (Modbus/RTU) |
| Working Conditions | 32 to 122 °F (0 to 50 ℃), 29.00 Psi (<0.2 MPa) |
