Overview

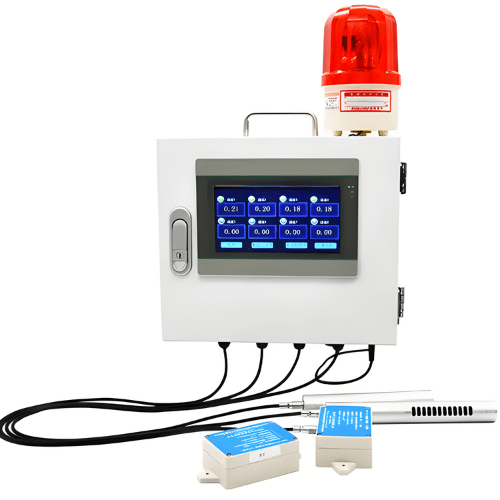

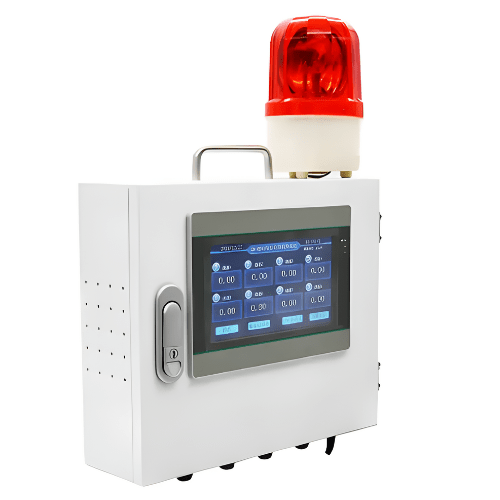

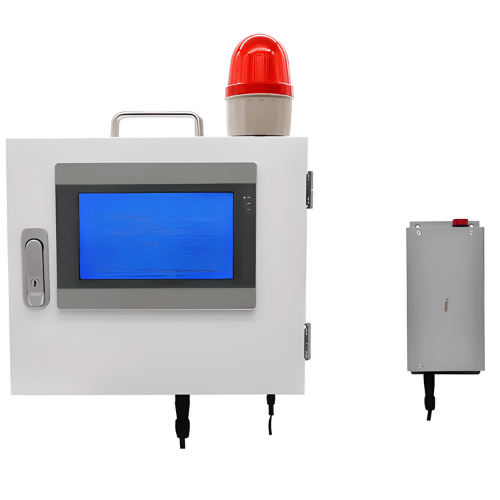

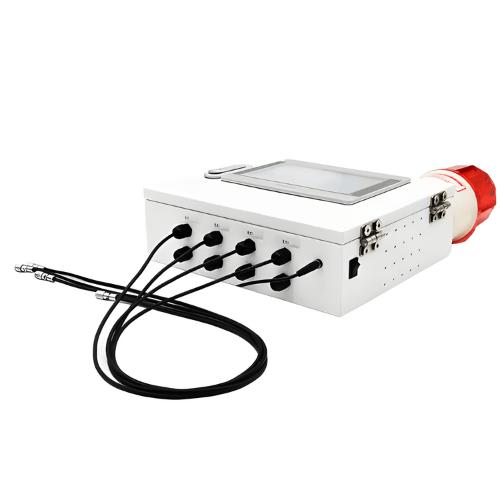

Enviro Test Construct wall-mounted online radiation monitoring system is a radiation monitor with Geiger Maitreya (GM-TUBE) as the monitoring core. Various specifications of sensors can be selected. The monitoring terminal can choose 1-8 sensors to measure multiple areas at the same time. radiation, and record various data, convenient USB interface to export data for analysis and assessment. The monitoring terminal is a 7-inch touch data collector with built-in storage, a settable alarm threshold, and a standard sound and light alarm device; at the same time, it outputs RS232, the protocol modbus-rtu protocol.
Features
- Wireless transmission
- Free app
- Sensor
- Call the police
- Touch screen

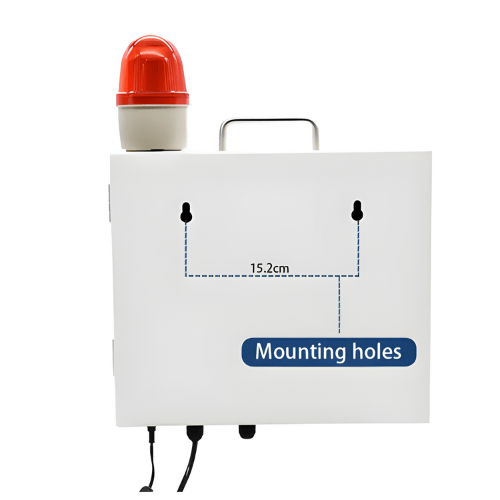

- Wall mount
Technical Specifications
| Host Display | 7 in touch LCD collector |
| Unit Selection | USv/h |
| Data Storage | Built in storage chip, USB drive export interface |
| Alarm Device | Standard sound and light alarm |
| Setting Functions | Alarm threshold can be set |
| Data Output | RS232 |
| Power Supply | DC 12 V |
| Transmission Line | Standard configuration of 5 meters, customizable |
| Dimensions | 14.17 in x 11.81 in x 3.94 in (36 cm x 30 cm x 10 cm) |
