Overview

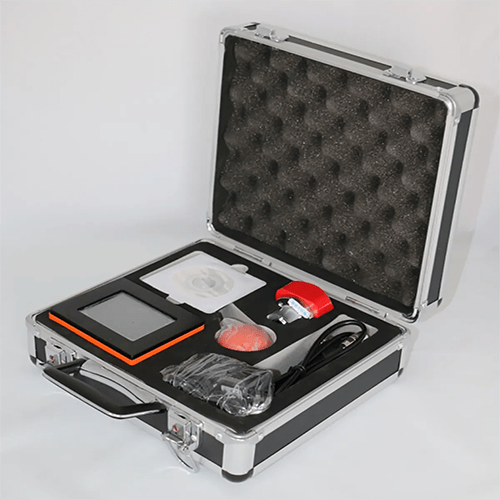

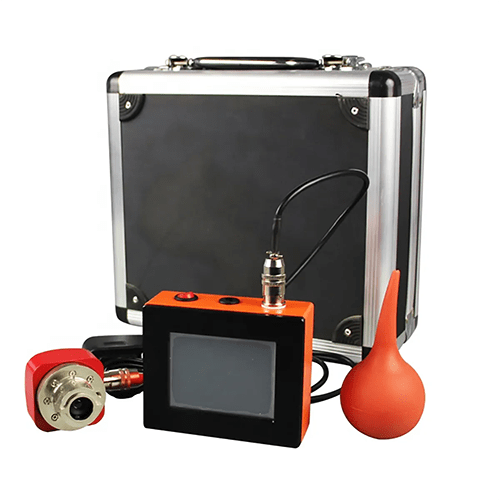

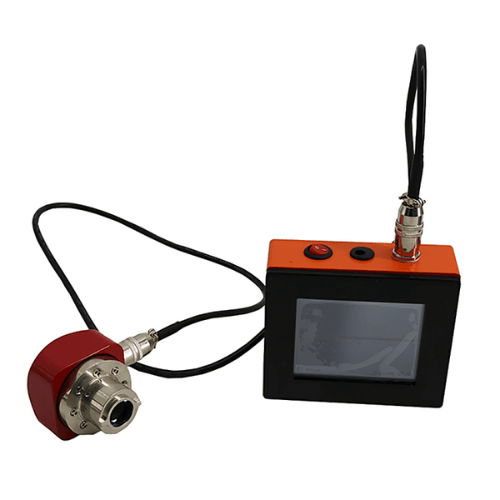

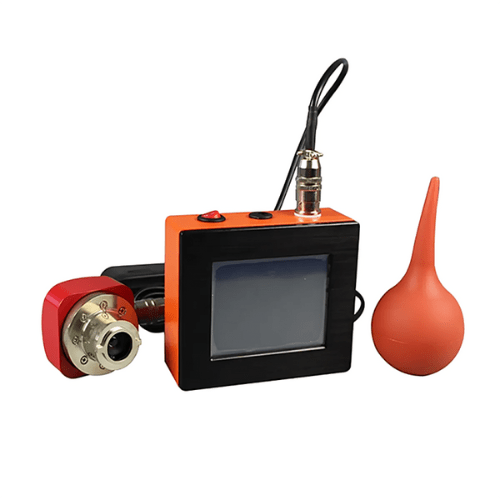

Enviro Test Construct wall crack wireless detection can be widely used in bridges, tunnels, buildings, concrete pavement, and metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, a color microscopic amplification probe (with 1.5 m connection cable) constitutes a measurement program that automatically scans the captured cracks and cracks width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number, crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive.
Features
- An automatic interpretation of the crack width
- Directly to the crack width values are displayed on the screen
- Automatic shooting crack photos
- Real-time image display
- Stored photos
- Data can be playback viewing
- probe (camera) comes with lighting fixtures
- Work around the clock
- From the light changes
- Handheld host of engineering plastic
- Lightweight and beautiful
- Strong
- Durable
- Simple alignment of cracks
- Crack photo in a standard BMP format
- The photos while preserving fracture images
- The probe shares lithium battery-powered
- Scalable to meet the needs of different users
Technical Specifications
| The Maximum Detection Ranges | 0 in to 0.31 in (0 mm to 8 mm) |
| Accuracy | Better than 0.03 in (1 mm) |
| Magnification | 40 times or 20 times or 13 times or 10 times, optional |
| Automatic Reading Of The Measuring Range | 0 in to 0.08 in (0.01 mm to 2.1 mm) |
| Automatic Reading Accuracy | Better than 0 in (0.01 mm) 0 in (±0.007 mm) (20 times the probe) |
| Automatic Reading Of The Measuring Range | 0 in to 0.16 in (0.01 mm to 4 .2 mm) |
| Automatic Reading Accuracy | Better than 0 in (0.02mm) 0 in (± 0.013 mm) (20 times the probe) |
| The Operating Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Host Interface | Standard USB |
| The Storage Media | Can be stored for more than 3000 photos (SD Card is free to expand) |
| Image Storage Format | BMP format, 24-bit color or 320 x 240 |
| Power Supply | Lithium battery, standby time: 18 hours |
| Size Host | 4.44 in x 2.75 in x 0.64 in (113 mm x 70 mm x 16.5 mm) |
| Probe | 1.88 in x 2.20 in x 2.28 in (48 mm x 56 mm x 58 mm) |
| Weight Host | 0.22 lb. (100 g) |
| Weight Probe | 0.22 lb. (100 g) |
