Overview

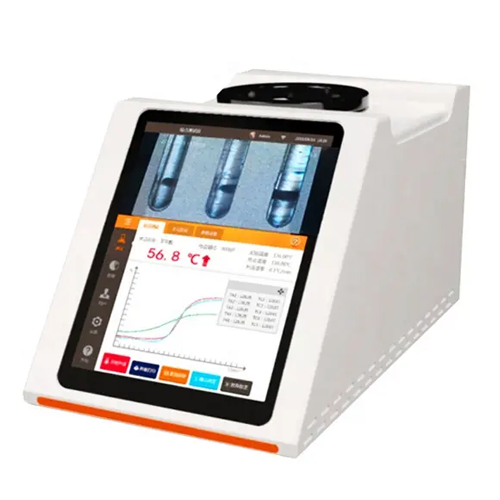

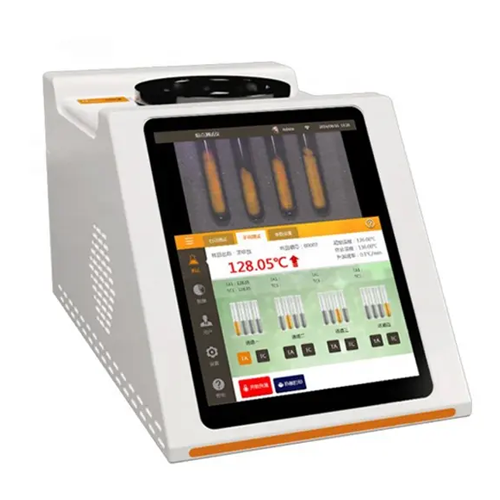

Enviro Test Construct Video Image Melt Point Test Instrument Camera, perfectly integrate video technology into melting point measuring. It not only provides users with reliable melting point test results, but also intuitively displays temperature curves and real-time video image, and achieves the function of save, replay the video, stamp video and so on. It also provides better help for users to observe the melting process of sample.
Features
- All Screen Design
- Adopt an 8-inch capacitive touch screen, with the brilliant Android system, let the operating easier
- Amazing Data Processing & Exporting
- The methods, atlas and detailed result are available for storage
- Connecting printer or all data export are both available
- Compliant with GLP, GMP
- Visual and Automatic Determination It includes a color display to observe the phase transition, is equipped with a video camera and a video replay function
- Available Testing 4 Samples Concurrently
- Multi-user ID Classify Function
- Adopt User ID management function. Users ID are available for adding, deleting and jurisdiction setting
Technical Specifications
| Position Capacity | 4 |
| Magnification of lens | 8 |
| Display | 8 in capacitive touch screen |
| Camera&Video | Camera |
| Video Replay | Manual |
| Model | No |
| Graphic | 0 |
| Methods Storage Capacity | 0 |
| Rom Capacity | 8 GB |
| FDA CFR21 part 11 | No |
| Comunication Ports | USB × 3, RS 232, Wi-Fi, RJ 45 |
| Temp Gradients | 32.18 °F to 68 °F (0.1 ℃ to 20 ℃) |
| Temperature Accuracy | 32.72 °F to 33.26 °F (0.4 ℃ to 0.7 ℃) |
| Temperature resolution | 32.18 °F (0.1 ℃) |
| Temperature Range | 572 °F (300 ℃) |
