Overview

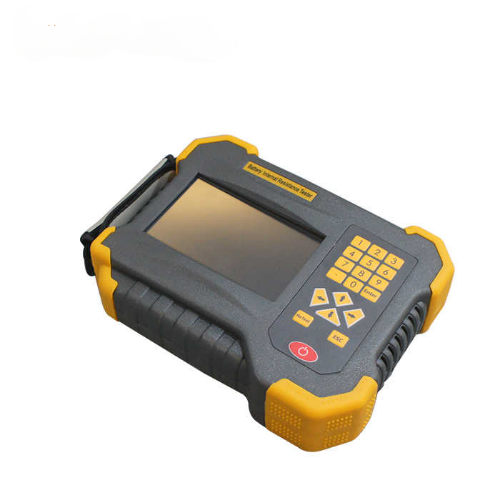

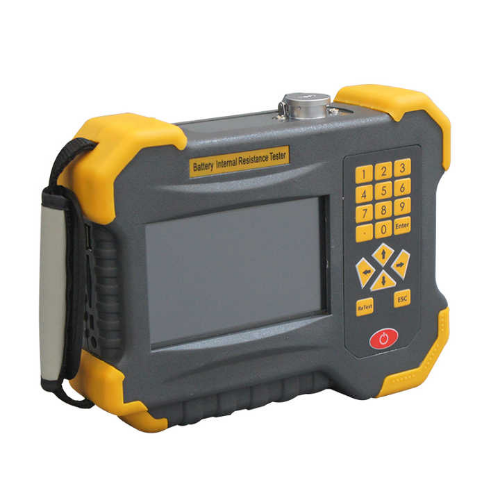

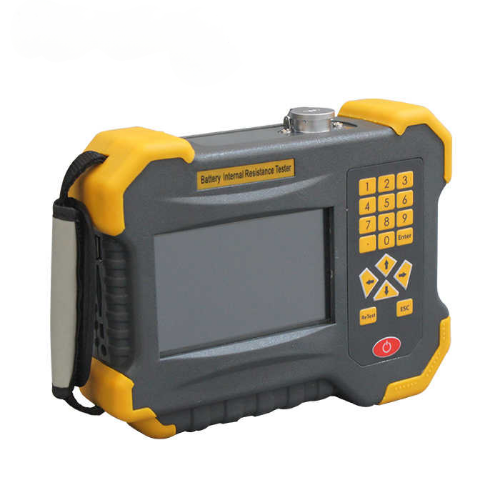

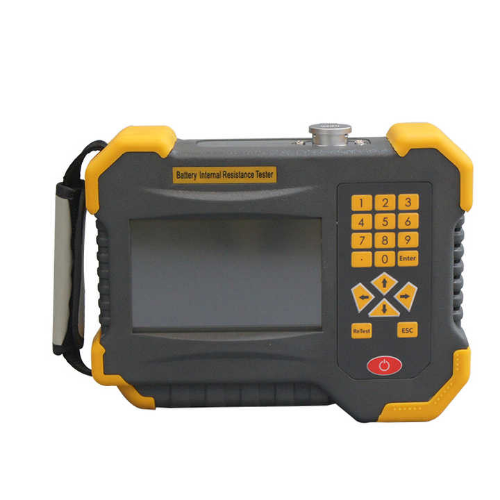

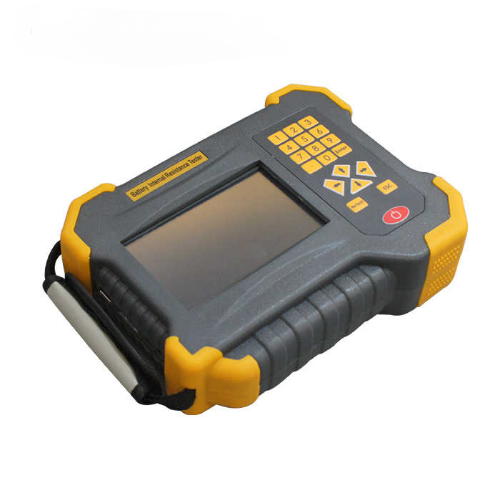

Enviro Test Construct Versatile Conductivity Tester utilized color resistance touch screen. It can be operated via finger or the touch pen with convenience and flexibility. It is portable and the data can be known soon exactly. This instrument can store and process data of battery voltage and internal resistance. It will alarm for any battery failure. We can check data, download data and delete data on the instrument. Software in PC can display.
Features
- Accurate, auto-range, ample data storage
- Auto-ranging from 0.000 S to 9990 S
- Stores 999 battery parameters, 500 set parameters
- Tests battery capacity: 5 AH to 6000 AH
- 5 in (127 mm) color touch LCD, intuitive interface
- Built-in chart and column analysis
- Battery capacity analysis, advantages/disadvantages
- Real-time voltage display, ripple calculation
- Data stored on PC via SD interface
- Strong data management, standalone operation
- Enhanced overvoltage and overcurrent protection
- Simplified circuit with new SOC chips
- Dual power supply for convenience
- Battery under voltage prompt for accuracy
- Compact and lightweight design
Technical Specifications
| Measuring Range of Internal Resistance | 0.000 mΩ to 9.9999 mΩ |
| Voltage Measuring Range | 0.000 V to 25 V |
| Internal Resistance | 0.001 mΩ |
| Minimum Voltage Measurement Resolution | 1 mV |
| Internal Resistance Accuracy | ± 0.5% rdg ± 6 dgt |
| Voltage Measurement Accuracy | ± 0.2% rdg ± 6 dgt |
| Power Supply | 12 V, Rechargeable Lithium Battery |
| Power Consumption | Standby for 8 hours |
| Storage Capacity | 64 Mbit Flash + 8GB SD Card |
| LCD | 5 in (127 mm) Color Touch Screen |
| Dimensions | 8.66 in x 6.69 in x 2.05 in (220 mm x 170 mm x 52 mm) |
| Weight | 2.43 lb (1.1 kg) |
