Overview

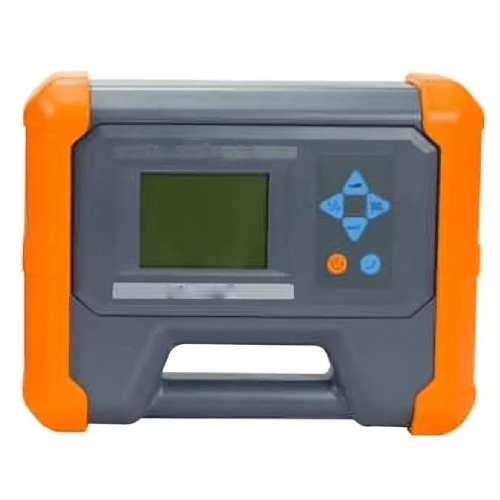

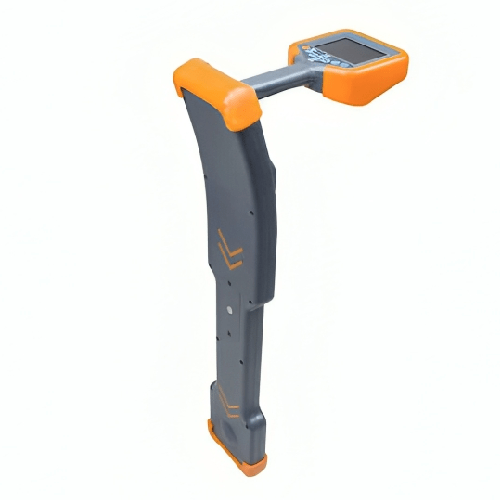

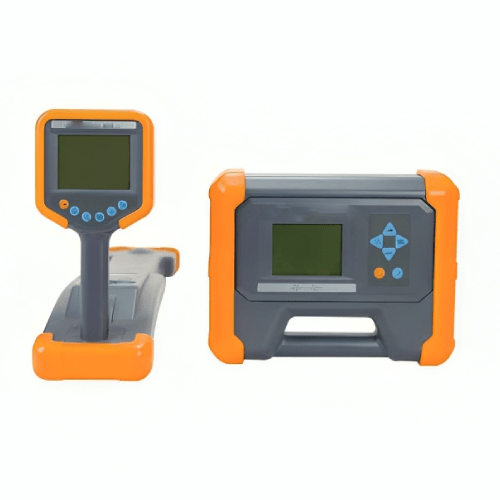

Enviro Test Construct underground pipe and cable tracer is a high performance underground metallic pipe locating system. It consists of a transmitter and a receiver, which can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
Features
- Sunlight readable colour display
- Multiple function integrated
- Ultra-high sensitivity with 2Hz ultra-narrow bandwidth receiving
- Correct and error tracking indication
- Depth measurement auxiliary sensor
- Passive detection spectrum analysis
- Transmitter supports variety signal output mode
- High power digital amplifier transmission, automatic impedance matching
- Flexible clamp for cable unique identification
- Transmit/receive all digital processing, stable and reliable
- Built-in large capacity lithium battery group
Technical Specifications
| Transmitter Output Mode | Direct connection mode, clamp coupling mode, radiation mode, booster mode |
| Transmitter Output Frequency | 640 hz, 1280 hz, 8 khz, 33 khz, 82 khz, 197 khz |
| Transmitter Output Power | 15 W max, 10 levels adjustable |
| Transmitter Impedance Matching | Fully automatic |
| Transmitter Over Voltage And Over Current Protection | Fully automatic |
| Transmitter Human-machine Interface | 320 × 240 dot matrix colour LCD |
| Transmitter Power | Built-in lithium battery group, nominal 7.4 v, > 6 ah |
| Transmitter Charger Input | AC 100 V to 240 V, 50 hz or 60 hz |
| Transmitter Charger Output | Dc 8.4 v, 2 a |
| Transmitter Protection Class | Ip 65 |
| Receiver Mode | Direct connection mode, clamp coupling mode, radiation mode, booster mode |
| Receiver Detection Mode | Wide peak, narrow peak, valley value, historical curve, frequency spectrum |
| Receiver Active Frequency | 640 hz, 1280 hz, 8 khz, 33 khz, 82 khz, 197 khz |
| Receiver Passive Frequency | 50 hz or 60 hz power frequency, 4 khz to 24 khz radio frequency |
| Receiver Human-machine Interface | 320 × 240 dot matrix colour LCD, sunlight visible |
| Receiver Power | Built-in lithium-ion battery pack, nominal 7.4 V, > 3 ah |
| Receiver Charger Input | AC 100 to 240 V, 50 hz or 60 hz |
| Receiver Charger Output | Dc 8.4 v, 2 a |
| Receiver Protection Class | Ip 65 |
| Receiver Conditions Of Use | -13 °F to 140 °F (-25 ℃ to 60 ℃), < 90% RH, < 2.796 mil (4500 m) |
| Transmitter Conditions Of Use | -13 °F to 140 °F (-25 ℃ to 60 ℃), < 90% RH, < 2.796 mil (4500 m) |
| Receiver Volume | 26.7 in × 4.72 in × 10.9 in (680 mm × 120 mm × 277 mm) |
| Transmitter Volume | 11.02 in × 8.66 in × 3.54 in (280 mm × 220 mm × 90 mm) |
| Receiver Weight | 4.4 lb (2 kg) |
| Transmitter Weight | 4.8 lb (2.3 kg) |
