Overview

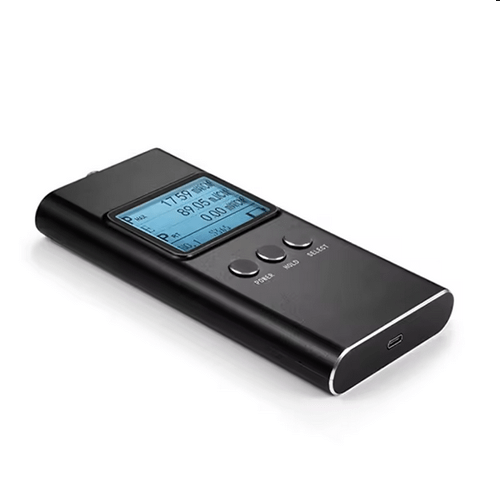

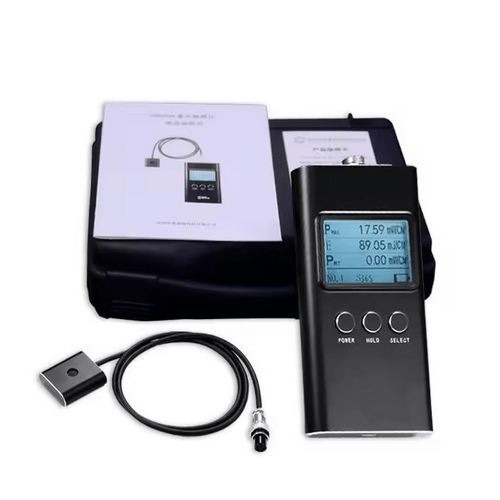

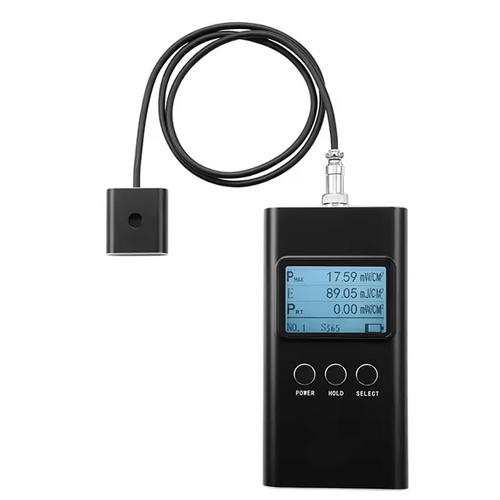

Enviro Test Construct Ultraviolet Radiation Meter uses UVC probe (230 nm to 280 nm, λp = 254 nm). With SMT technology and high precision and low power consumption digital chip, the detector has stable performance and strong applicability after strict spectral and angle characteristics correction. The instrument is used for measuring the ultraviolet irradiance of ultraviolet germicidal lamp, mosquito killing lamp, shoe factory, leather factory, etc.
Features
- The spectral and angular with good stability
- Using microcomputer technology, high precision, low power consumption
- Digital LCD display with backlight
- The probe is separated, with replacement of different probes
- Memory function which can circulate 10 sets of data
- Digital hold function, hold key, lock data, facilitate record comparison
Technical Specifications
| Spectral Range | 230 mm to 280 nm, λp = 254 nm |
| Irradiance Measuring Range | 0 µW/cm² to 20000 µW/cm² |
| Irradiance Resolution | 0.1 µW/cm² |
| Energy Measuring Range | 0 mJ/cm² to 999999 mJ/cm² |
| Energy Measuring Accuracy | 5 % (typical) |
| Sampling Speed | about 0.5 s |
| Power Supply | 1000 mAh lithium-ion battery |
| Photoreceptor Aperture | 0.31 in (8 mm) |
| Line Length | 1 M (can be extended to 5M) |
| Data Record | circulate 10 sets of data |

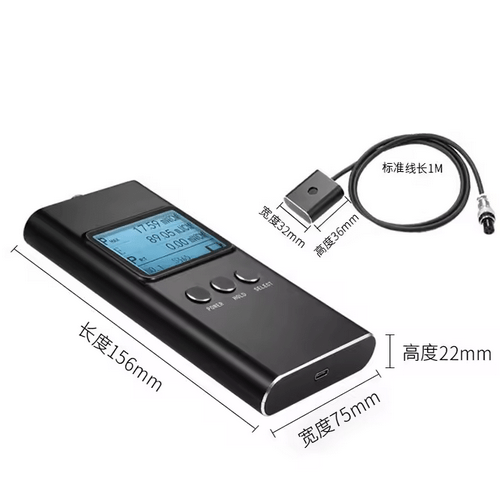

| Machine Size | 6.14 in x 2.95 in x 0.86 in (156 mm x 75 mm x 22 mm) |
| Probe Size | 1.25 in x 1.41 in x 0.55 in (32 mm x 36 mm x 14 mm) |
| Weight | 0.77 lb (350 g) |
| Machine Temperature | -4 ℉ to 140 ℉ (-20 °C to 60 °C) |
| Probe Temperature | -4 ℉ to 212 ℉ (-20 °C to 100 °C) |
