Overview

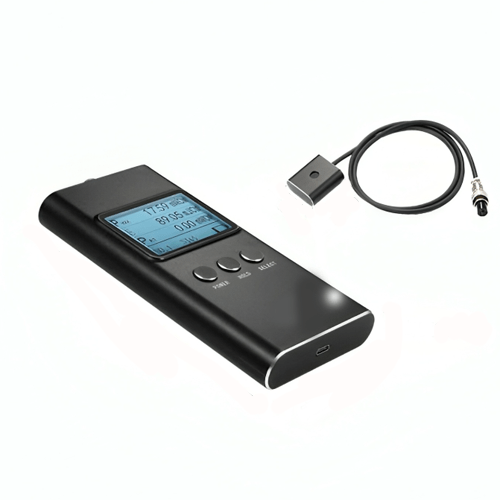

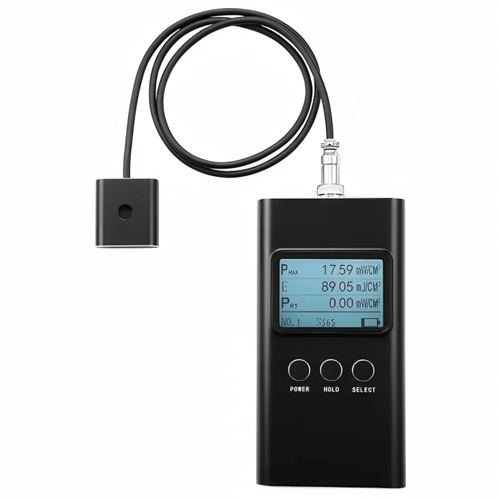

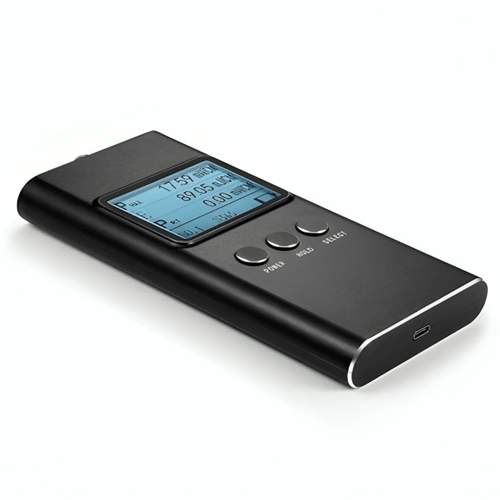

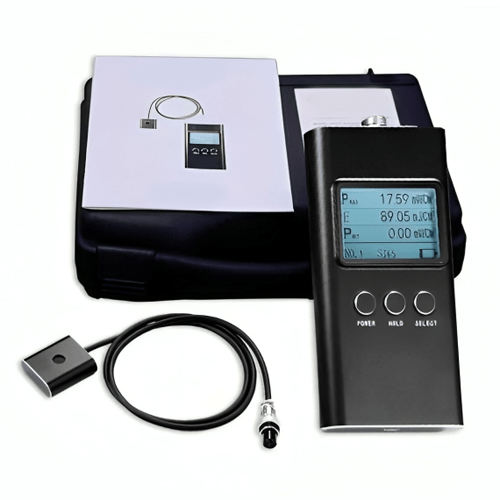

Enviro Test Construct ultraviolet radiation meter uses UVC probe (230nm-280nm, λp=254nm). With SMT technology and high precision and low power consumption digital chip, the detector has stable performance and strong applicability after strict spectral and angle characteristics correction. The instrument is used for measuring the ultraviolet irradiance of ultraviolet germicidal lamp, mosquito killing lamp, shoe factory, leather factory, etc.
Features
- Good stability
- High precision
- Low power consumption
- Digital LCD display with backlight
- Memory function can circulate 10 sets of data
- Digital hold function
- Automatic shutdown function saving power
- Instrument built-in rechargeable lithium-ion battery
- USB line charging
Technical Specifications
| Spectral Range | 230 to 280 nm, λp=254 nm |
| Irradiance Measuring Range | 0 to 20000 uW/cm² |
| Irradiance Resolution | 0.1 uW/cm² |
| Energy Measuring Range | 0 to 999999 mJ/cm² |
| Energy Measuring Accuracy | +/-5% (typical) |
| Sampling Speed | about 0.5 seconds |
| Photoreceptor Aperture | 0.31 in |
| Line Length | can be extended to 16.40 ft |
| Data Record | 10 sets of data |
| Power Supply | 1000 mAH lithium-ion battery |
| Temperature | Machine -4 °F to 140 °F (-20 °C to 60 °C) Probe -4 °F to 212 °F (-20 °C to 100 °C) |
| Size | 6.14 in x 2.95 in x 0.87 in (156 mm x 75 mm x 22 mm) |
| Weight | 0.77 lbs (350 g) |
