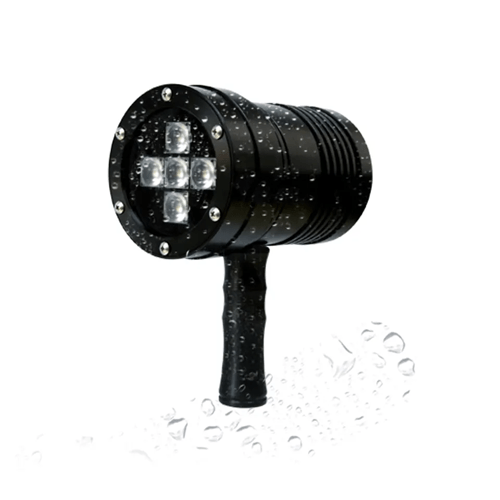

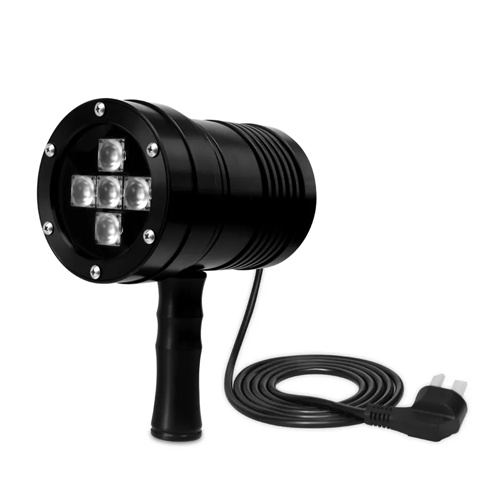

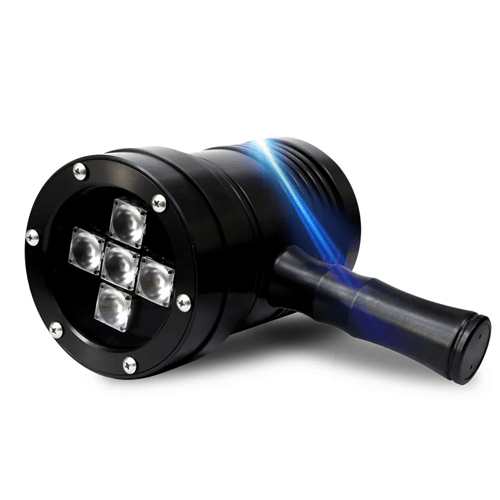

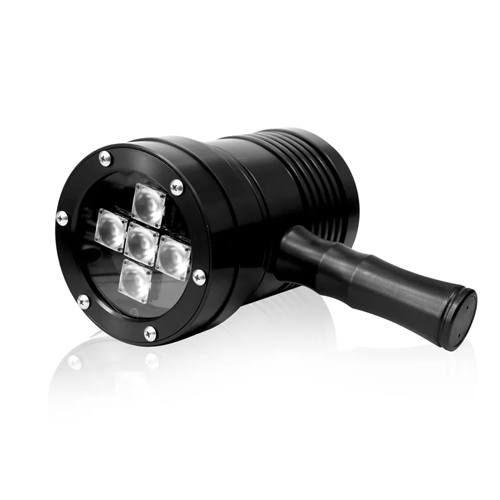

Enviro Test Construct Ultraviolet Crack Detector

This ultraviolet crack detector has intensity ultraviolet ray of ≥16000 uW / cm2, input voltage of 100 V to 240 V (AC) and output power of 15 W.

SKU: ETCCD-259 Category:

Features

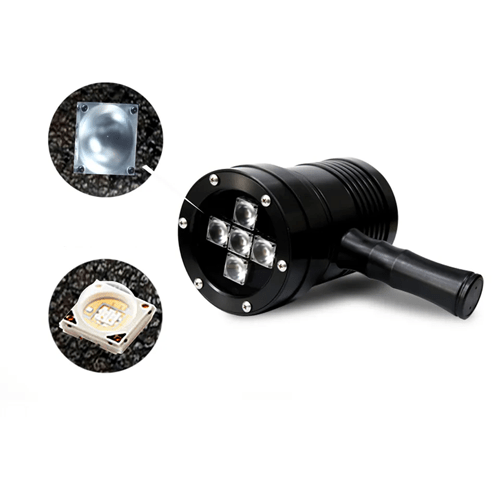

  • Utilizes high power 365 nm
  • Lamp beads boast a 20,000 hour lifetime
  • Energy-efficient
  • Eco-friendly
  • Quick-start
  • High-power output
  • Immediate maximum illuminance
  • Ultra-low power consumption
  • High UV transmittance transparent Quartz optical glass • Efficient cooling fins
  • Low-noise high-speed fan for heat dissipation • Equipped with a dedicated high-speed charger



Technical Specifications

Lamp BeadsNICHIA 365 nm Ultraviolet band LED Lamp Beads
Input Voltage100 V to 240 V (AC)
Irradiated Area at 38 cm Distance7.8 in (200 mm)
Diameter of Light Inlet Window3.4 in (88 mm)
Power SupplyAC
Lamp Bead Amount5
Output Power15 W
Intensity of Ultraviolet Ray at 38cm Distance216000 uw/cm2
Number of Battery2×4
Charging Time>4 hrs
Working Hours>7 hrs
Weight (including Battery)2.84 lb (1290 g)
