Overview

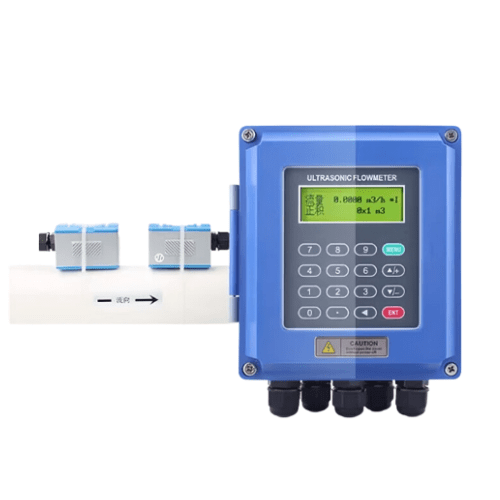

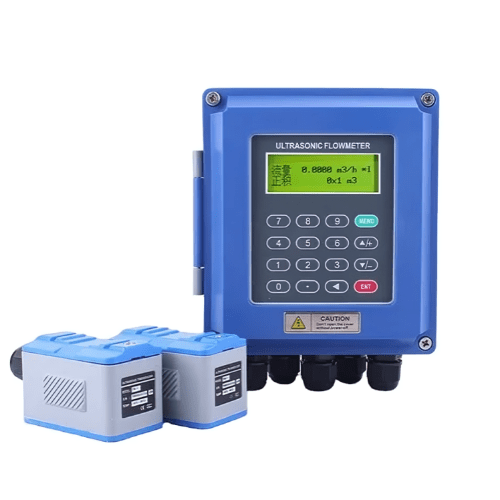

Enviro Test Construct ultrasonic flow meter with data logger is a sophisticated instrument used to measure the flow rate of liquids in various industrial and commercial applications. This type of flow meter utilizes ultrasonic technology to accurately and non-invasively measure the flow of liquids, making it suitable for a wide range of industries including water and wastewater management, oil and gas, chemical processing, and more.
Features
- Waterproof shell
- SMT automatic
- ABS Interface
- Temperature Sensor
Technical Specifications
| Accuracy | ±1% |
| Velocity range | 0 ft to 32.80 ft (0 m / s to + 10 m / s), forward and backward measurement |
| Pipe diameter | DN 15 to DN 6000 |
| Fluid temperature | -22 °F to 320 °F (-30 °C to 160 °C) |
| Fluid type | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils and other single uniform liquids that can conduct ultrasonic waves |
| Pipe material | All dense pipes such as steel, stainless steel, cast iron, copper, PVC, aluminum, and glass fiber reinforced plastics are allowed to be lined |
| Signal output | 1 Channel 4 mA to 20 mA current output impedance 0 K to 1K, accuracy 0.1%, 1 channel OCT pulse output pulse width 6 ms1 to 1000 ms1 relay output |
| Signal input | 3 C hannels of 4 mA to 20 mA current input can be used as data collector to connect three wire PT 100 platinum resistance to realize heat measurement |
| Communication interface | Isolate RS 485 serial interface and support Modbus protocol |
| Data storage | SD card regularly stores the set parameters and measurement results (optional) |
| Power supply mode | DC 8 V to 36 V or AC 85 V to 264 V |
