Overview

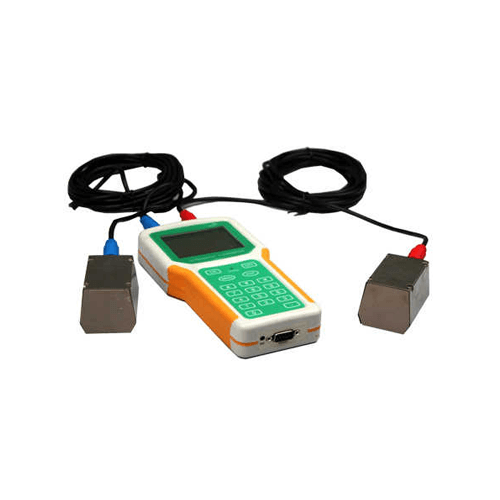

Enviro Test Construct ultrasonic flow meter is a hand-held portable transit-time ultrasonic flow meter with clamp-on transducers for non-invasive liquid measurement. Our microprocessor-based, user-friendly, field programmable flow measurement technique allows no interruption of the process flow and has low installation costs.
Features
- Four line LCD display with flow rate
- Totalizer and signal condition
- The flow meter is designed for high accuracy
- Small size and lightweight
- Wide range, velocities
- Ni-MH Battery life for up to 10 hours continuous operation
- Transducers include magnet device
- It can install on metal pipe without mounting belt
- Data logger which records flow rate, date, total flow, signal condition… etc
- Response time less than 1 second
Technical Specifications
| Power Supply | Build-in Battery (>12 hrs) |
| Output | Data Storage Device |
| Power | 100 V to 240 V |
| Error | ±1.0 % R (Flow Rate >0.5m/s ) |
| Sensitivity | 0.01 m/s |
| Repeatability | 0.2% R |
| Pipe Size | 679 in to 498 in (1000 mm to 4570 mm) |
| Temperature | -40°C to 121°C (-40 °F to 249 °F) |
| Type of Transducers | L Type, S Type, M Type, High Temperature Type |
| Pipe Material | Various kinds of material |
| Dimension | 1.65 in x 0.98 in x 0.98 in(42 mm x 25 mm x 25 mm) |
| Weight | 0.44 lb (<200g) |
