Overview

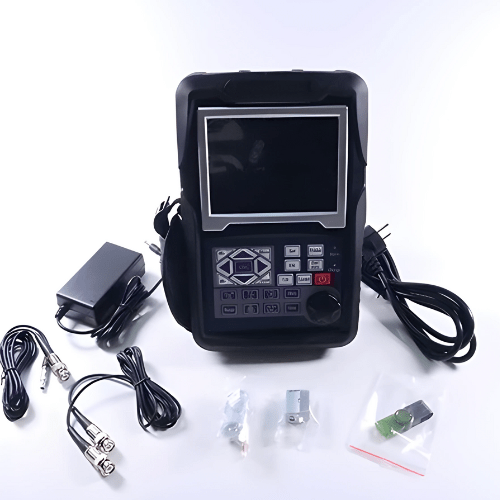

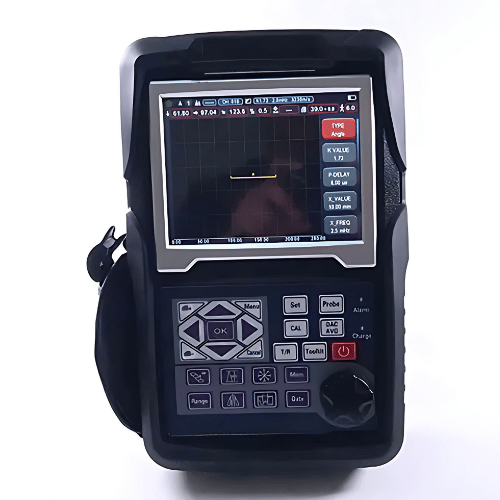

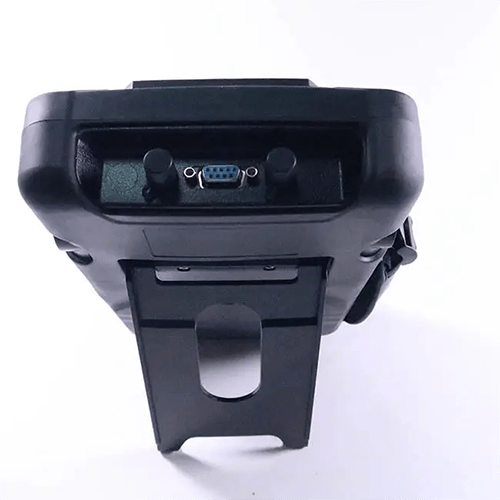

Enviro Test Construct Ultrasonic Flaw Detector has a user-friendly dialog interactive helps operations like Calibration, making curves, etc. All tools you need: DAC, AVG, TCG AWS, etc. Pulse Repetition Frequency: 10 Hz to 2000 Hz precise adjust, high speed scan, no miss out. High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions. 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws. Can use probe frequency 20M perfectly. IP65 standard. Protective rubber casing. Damping support makes it stands in any angle. Battery lasts 15 hours for one charge.
Features
- Automated display precise flaw location
- Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection
- Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
- Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated
- Connecting U-Disk, the unit can get unlimited memory
- There are 15 standards in the unit
- Bluetooth connection to mobile device to generate and print detection reports on-site
- AWS D1.1
- Curved Surface Correction feature.
- Crack Height Measure function.
- Magnify gate spreading of the gate range over the entire screen width.
- Auto-gain function.
- Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display.
- Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
- Scan Freeze: Display freeze holds waveform and sound path data.
- Alarm: Beep and LED.
- Real Time Clock
- Fill echo
- Capture mark
- Echo color within the Gate.
Technical Specifications
| Operating Temperature | 14°F to 122°F (-10℃ to 50℃) |
| Storage Temperature | -22°F to 122°F (-30℃ to 50℃) |
| Display Delay | -20 µs to 3400 µs |
| Probe Delay/Zero Offset | 0 µs to 99.99µs |
| Rectification | Positive half wave, negative half wave, full wave, RF System |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Range | 0 mm/s to 10000 mm/s at steel velocity |
| Material Velocity | 100 m/s to 20000 m/s) |
| Pulse Repetition Frequency | 20 Hz to 2000 Hz |
| Dynamic Range | ≥38 dB |
| Linearity | Horizontal: +/-0.2%, Vertical: 2.0%, Amplifier Accuracy +/-1 dB. |
| Resolving Power | >40 dB (5P14) |
| Sensitivity Leavings | >66 dB |
| Reject (Suppression) | 0% to 80% full screen height |
| Probe Types | Single Straight, Single Angle, Daul Straight, Daul Anlge, Thrugh, Creeping, Surface |
| Bandwidth (Amplifier Bandpass) | 0.2 MHz to 20 MHz |
| Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
| Operating Time | 15 Hours |
| Recharge Time | 4 Hours |
| Pulse Energy | 70V, 100V, 200V, 300V, 400V, 500V selectable |
| Dimensions | 9.84 in x 6.5 in x 2.17 in (250 mm×165 mm ×55 mm) |
| Weight | 2.65 lbs (1.2 kg) |
