Overview

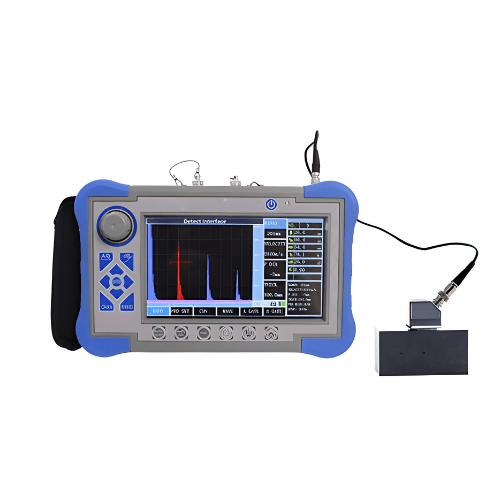

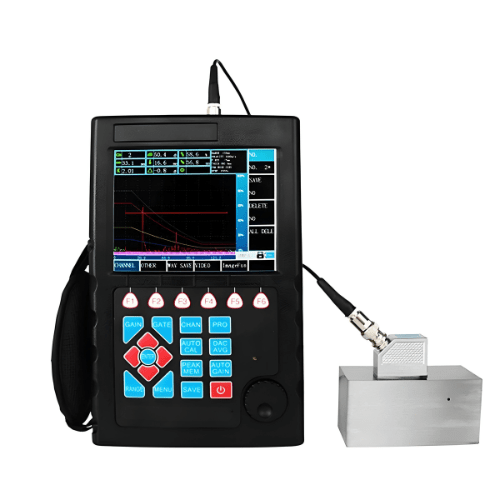

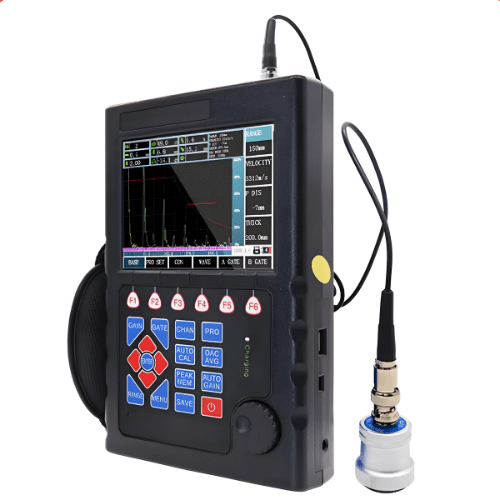

Enviro Test Construct Ultrasonic Flaw Detector is advanced type, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the workpiece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.
Technical Specifications
| Measuring Range | Scan range: 0 to 393.7008in (0 to 10000mm) |
| Material Sound Speed(m/s) | 39.3701 in/s to 590.55118 in/s (1000 m/s to 15000 m/s) |
| Gain Adjustment | 0 dB to 120 dB |
| Flaw Detection Sensitivity Margin | ≥ 62 dB |
| Dynamic Range | ≥ 32 dB |
| Flaw Detection Channel | 300 |
| Battery | Lithium (Li) Battery 5000mAh |
