Overview

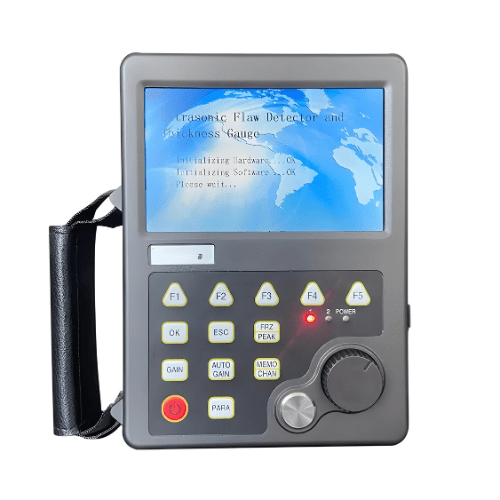

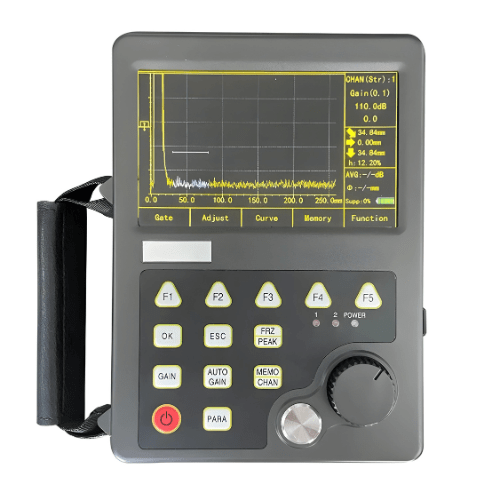

Enviro Test Construct Ultrasonic Flaw Detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light.
Technical Specifications
| Pulse Width | Square wave width 30 ns to 1000 ns adjustable, step 0.1ns |
| Material Sound Velocity | 984.252 ft/s to 49,212.6 ft/s (300 m/s to 15000 m/s) |
| Detection Method | Negative wave, positive wave, two-way wave, filter, RF wave |
| Gain Adjustment | 0 to 110 dB 0.1 or 1 or 2 or 6 step adjustment |
| DAC, AVG Function | DAC curve, AVG curve |
| Equivalent Input Noise | <80 x 10-9 V/√Hz |
| Pulse Repetition Frequency | 20 Hz to1000 Hz, Stepping 25 V |
| Pulse Voltage | 25 V to 400 V can adjust, step 25 V |
| Appearance Size | 7.09 in x 5.12 in x 1.57 in (180 mm x 130 mm x 40 mm) |
