Overview

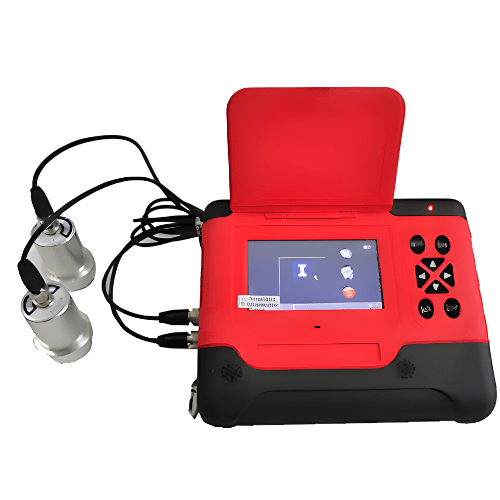

Enviro Test Construct Ultrasonic Crack Detector is mainly used for accurate detection of crack width and crack depth of bridges, tunnels and concrete pavement. The ultrasonic crack comprehensive detector is a comprehensive instrument which combines crack width meter and crack sounder. Users can not only observe and record the width of cracks in real time by means of color microprobe, but also measure the depth of cracks by means of ultrasonic probe.
Features
- Available standard and high-fit two-color micro-amplification probes
- Standard and simple two depth measurement methods
- Can measure the crack depth, greatly simplifying the field operation steps

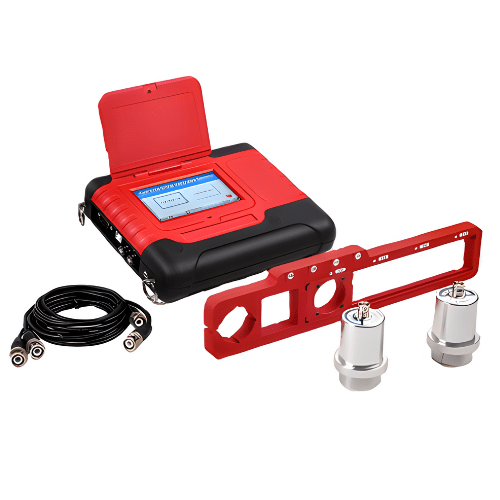

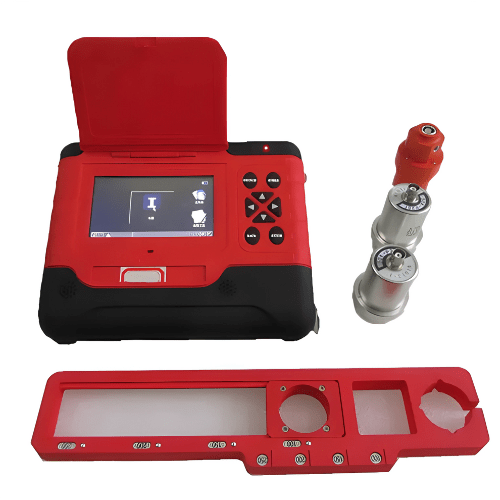

- Standard ultrasonic transducer bracket, the measuring point spacing is precisely adjustable
- Eliminates the on-site marking, greatly improving detection efficiency.
- Adopts automatic image recognition and width intelligent calculation technology
- The crack position does not need to be adjusted
- On-site inspection is convenient and quick
- Automatic crack identification calculation, real-time display, high degree of intelligence.
- Touch screen operation is simple and fast.
- On-site full-process voice and text prompts
- Friendly human-computer interaction interface
- Various built-in help files
- Demonstration videos to facilitate the user’s proficiency
- 4GB SD card can store more than 200,000 measurement files
- Powered by a high-efficiency, energy-saving rechargeable lithium battery
- Low power consumption.
Technical Specifications
| Hardware Platform | Embedded ARM9 Hardware Platform, WinCe5.0 Operating System, True Color TFT Touch Screen |
| Crack Width Test Range | Standard Probe: 0.004 in to 0.26 in (0.01 mm to 6.5 mm); |
| Crack Width Test Accuracy | Standard Probe: ≤ ±0.008 in (0.02 mm) |
| Crack Depth Test Range | 0.4 in to 19.7in (10 mm to 500 mm) |
| Crack Depth Accuracy | ≤5% |
| Image Storage Format | BMP or JPEG |
| Power Supply | Rechargeable Lithium Battery |
| Working Time | ≥28 Hours |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Working Humidity | ≤90% RH |
