Overview

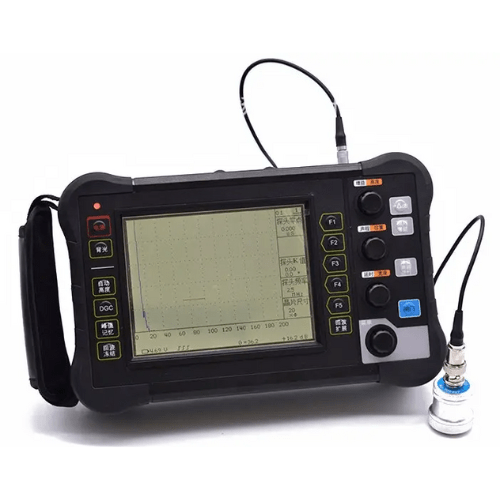

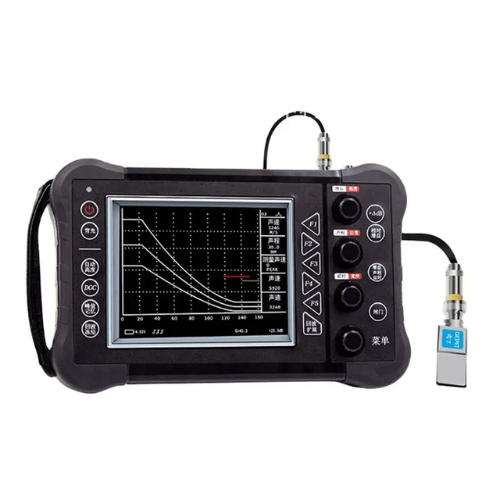

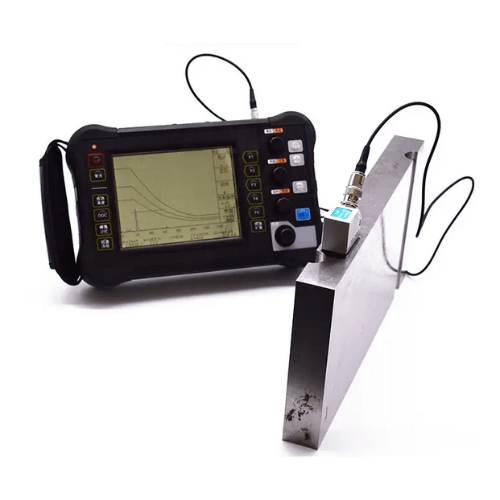

Enviro Test Construct ultrasonic crack and fault detector has a touch keyboard, intuitive and easy to remember, graphics display of the operating process, and can be mastered after simple training. Instrument and probe performance are automatic measurement, instrument calibration is automatic, thickness and material sound velocity can be measured, suitable for manual detection of irregular parts such as stamping parts, forging, and die.
Features
- Touch keyboard for intuitive use, easy to remember
- Full text and graphical display of operating process
- Automatic instrument & probe performance measurement
- Automatic instrument calibration
- Measures thickness and material sound velocity
- Ten independent flaw detecting channels
- Custom flaw detection process
- Real-time display of flaw echoes
Technical Specifications
| Material Velocity | 1000 m/s to 9999 m/s |
| Frequency bandwidth | 0.4 MHz to 10.0 MHz |
| Gain margin | 0 dB to 110 dB |
| Detection range | 0 in to 236.22 in (0 mm to 6000 mm) |
| K value range | 0.2 to 5 |
| Inhibition of range | 0% to 50% |
| Increment | 0 dB to 20 dB |
| Compensation | -20 dB to 20 dB |
| Noise level | <10% |
| Storage temperature | -4 °F to 158 °F (-20 ℃ to +70 ℃) |
| Operating temperature | 14 °F to 122 °F(-10 ℃ to 50 ℃) |
| Working voltage | DC 9 V to 15 V |
