Overview

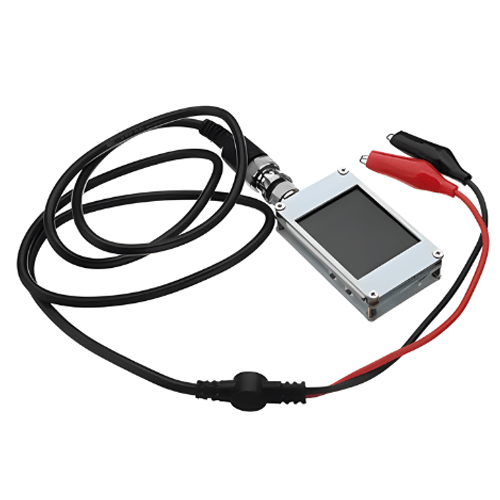

Enviro Test Construct ultra small digital oscilloscope is a super small digital oscilloscope with 5 MS/s sampling rate and 1 MHz bandwidth is designed for electronic enthusiasts and circuit R and D maintenance personnel. 1 MHz bandwidth can be used for an amplifier, oscillator, automatic control system, DC or DC, inverter, switching power supply and so on. Whether DIY or scientific research education, vehicle maintenance, household appliances maintenance and so on are all good choices.
Features
- Memory compression technology
- Waveform refresh screen does not flicker
- 8 in (46 mm) colour display screen
- 1MHz analog bandwidth and 5 MS or s sampling rate
- High measurement voltage range, 1X can measure 0 V to 40 V
- High measurement voltage range, 10X can measure 40 V to 800 V
- Frequency can be displayed, Vmax, Vmin, Duty, Vrms, Vpp
- At any time, the waveform display (pause function) is frozen
- Battery or USB power supply
- Built-in 250 mAh battery and intelligent charge management
- Ultra small volume, easy to carry
Technical Specifications
| Analog band width | 1 MHz |
| Maximum real time sampling rate | 5 MS/s |
| Vertical sensitivity | 50 mV or div to 200 V or div |
| Horizontal time base range | 100 mS or div to 2 uS or div |
| Maximum input voltage | 40 V (1X probe), 800 V (10X probe) |
| Storage depth | 40 KB |
| Input resistance | 1 M |
| ADC precision | 12 bits |
| Coupling mode | AC or DC |
| Trigger mode | Auto |
| Trigger edge | Ascending or descending edge |
| External trigger voltage | 0 V to 40 V |
| Display | TFT colour display |
| Power supply | 250 mAh lithium battery |
| Size | 2.24 in x 1.33 in x 0.43 in (57 mm x 34 mm x 11 mm) |
| Weight | 0.08 lb (40 g) |
