Overview

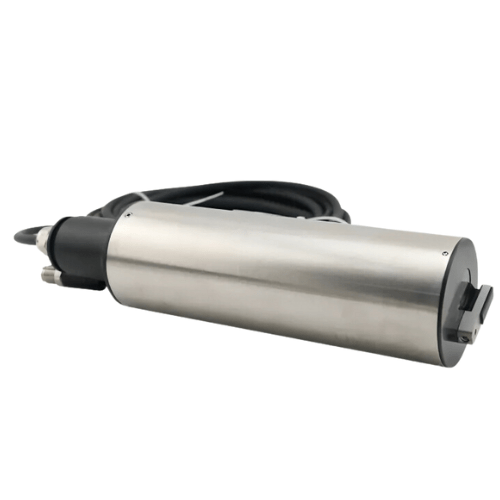

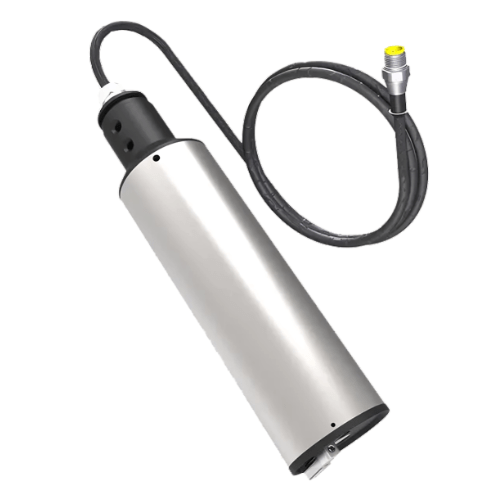

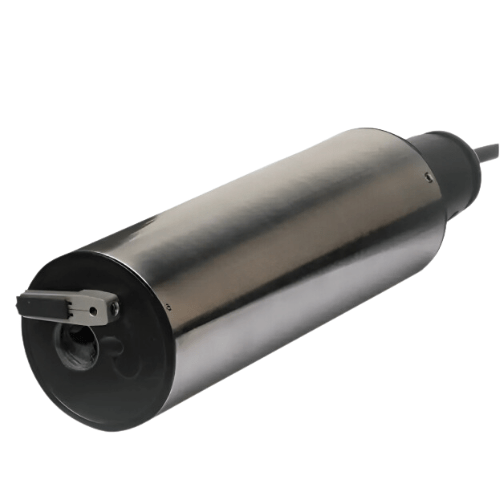

Enviro Test Construct Turbidity Probe Sensor uses a light scattering method based on combination of infrared absorption, infrared light emitted by the light source after the scattering of turbidity in the sample. Finally, by the photodetector conversion value of electrical signals, and obtaining the turbidity of the sample after the analog and digital signal processing.
Features
- Durable with stainless steel shell material
- Self-cleaning wiper, reduce manual maintenance
- RS458 standard Modbus communication protocol
- Circulation type turbidity sensor dedicated for drinking water, portable water quality monitoring
Technical Specifications
| Measure Range | 0.01 NTU to 100 NTU,0.01 NTU to 4000 NTU |
| Accuracy | ±1%, or±0.1 NTU, choose the big one |
| Current Speed | ≤2.5 m per s, 8.2 ft per s |
| Calibration | Sample calibration, slope calibration |
| Temperature Storage | 5 °F to 149 °F (-15 °C to 65 °C) |
| Working Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Size | 2.36 in × 10.08 in (60 mm × 256 mm) |
| Weight | 3.64 lb (1.65 kg) |
