Overview

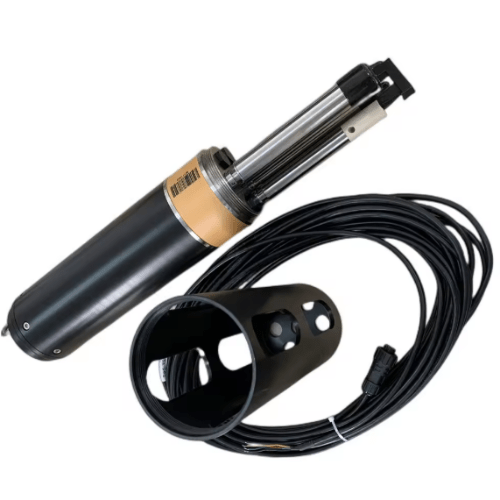

Enviro Test Construct tubidity sensor water quality pH meters is an integrated multi-parameter water quality instrument used for monitoring water quality. It can be installed with up to 7 probes (built-in pressure sensor is for optional), can measure water quality parameters as below: Temperature, Conductivity, pH, ORP, Turbidity, Dissolved Oxygen, depth, Chlorophyll, Blue-green Algae, NH4+, K+, TSS, Salinity and etc. It has a special self-cleaning design, equipped with self-cleaning components to eliminate bubbles and prevent microbial growth, and can be monitored in various water environments including rivers, lakes, oceans, reservoirs, industrial water and groundwater.
Features
- Good reliability, can operate in an unattended environment
- Self-cleaning coating film and wiper structure design
- High degree of integration can choose sensors
- The maintance frequency is low
Technical Specifications
| Measuring Parameters | Standard: Temperature, Conductivity, pH, Turbidity, Dissolved Oxygen |
| Data Output | RS.485 Modbus |
| Internal Storage | 4 M |
| Pressure Range | Sensor Probe ≤0.6 MPa, Sensor Body ≤2 MPa |
| Cable Length | 16.40 ft (5 m Standard Cable) |
| Guarantee Period | Sensor Body 12 months, pH or ORP Probe 12 months, Ion Sensor 6 month, DO Membrane Cap 6 months |
| Waterproof Rate | IP68 |
| Power | 12 V DC to 24 V DC |
| Main Material | POM+316 Stainless Steel, O ring: Viton ring+ rubber ring, Cable: PVC |
| Storage Temperature | 68 °F to 140 °F (20 °C to 60 °C) |
| Working Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Size | 3.46 in x 21.57 in (88 mm x 548 mm) |
| Weight | 55.11 lb. (2.5 kg) |
