Overview

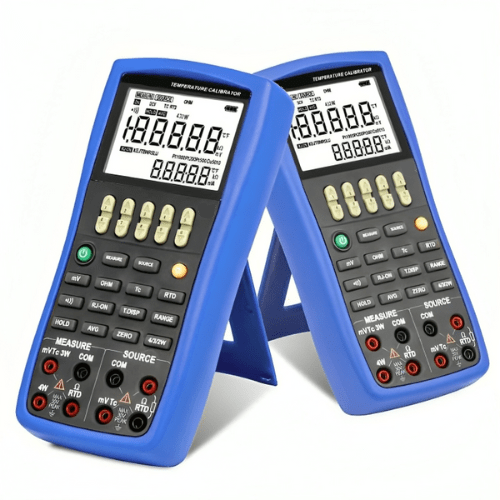

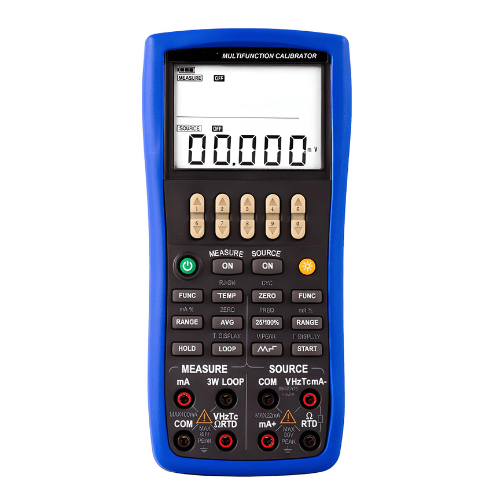

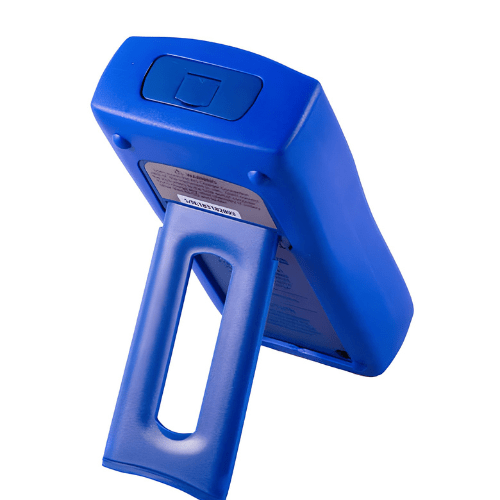

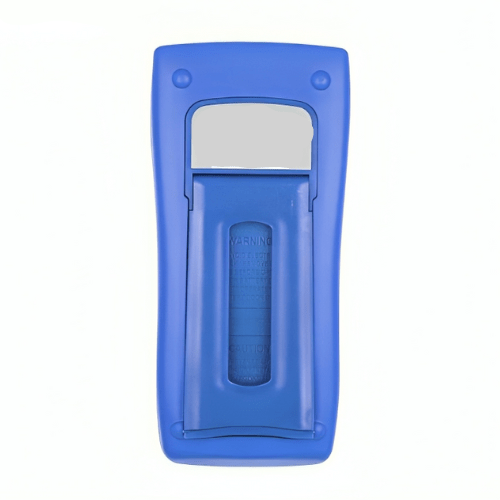

Enviro Test Construct thermocouple calibrator multifunction temperature is a handheld, battery-operated instrument that measures and sources electrical and physical parameters.
Features
- 2-wire, 3-wire, 4-wire connection method for ohm and RTD measurement
- Big LCD can display the TC or RTD measurement value
- Voltage or resistance corresponding simultaneously
- TC measurement or source terminals and built-in lead connector of same temperature
- Room temperature monitoring under any operation
- Measurement wave-filter function
- Measurement manual-holding function
- Standard Accessories
Technical Specifications
| Source | DC millivolt | Range -10 mV to 100 mV Accuracy= ± (% of the set value+% of range) 0.02%+0.01% Resolution 1 uV |
| DC voltage | Range -0.1 V to 1 V Accuracy= ± (% of the set value+% of range) 0.02%+0.01% Resolution 10 uV | |
| Resistance | Range 0 KΩ to +40 KΩ Accuracy= ± (% of the set value+% of range) 0.02%+0.02% Resolution 0.01 Ω or 0.1 Ω | |
| RTD | Range 6 types (Pt100 or Pt200 or Pt500 or Pt1000 or Cu10 or Cu50) Accuracy 32.36 °F (0.02 °C) Resolution 32.18 °F (0.1 °C) | |
| Frequency | Range 1 Hz to 110 KHz Accuracy ±2 words Resolution 0.01 Hz or 1 Hz or 0.1 KHz or 2 KHz | |
| Measure | DC millivolt | Range -5 mV to 550 mV Accuracy= ± (% of Reading+ % of Range) 0.02%+0.01% Resolution 1 uV or 10 uV |
| Resistance | Range 0 KΩ to 5.5 KΩ Accuracy= ± (% of Reading+ % of Range) 0.05%+0.02% Resolution 0.01 Ω or 0.1 Ω | |
| RTD | Range 6 types (Pt100 or Pt200 or Pt500 or Pt1000 or Cu10 or Cu50) Accuracy 32.9 °F (0.5 ℃) Resolution 32.18 °F (0.1 ℃) | |
| Continuity beeper | Range 0 Ω to 500 Ω Accuracy ≤50 Ω sound Resolution 0.01 Ω | |
| Size | 8.07 in × 3.74 in × 1.65 in (205 mm × 95 mm × 42 mm) | |
| Weight | About 1.10 lb (500 g) | |
