Overview

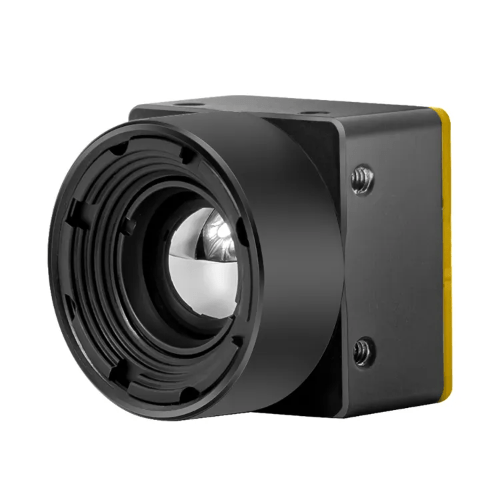

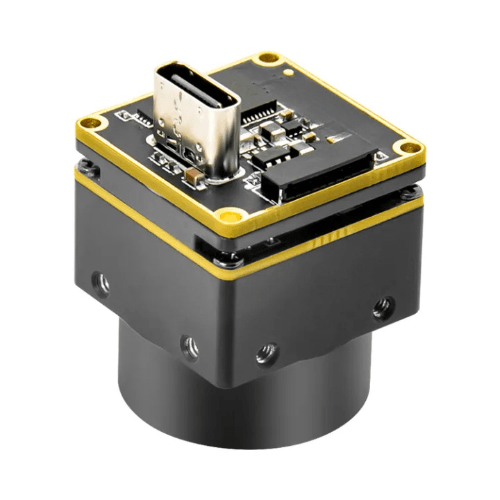

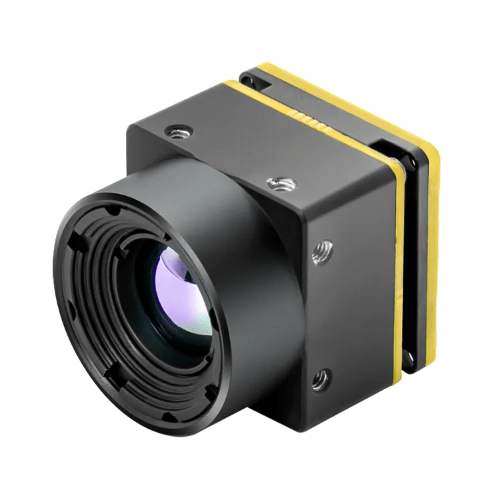

Enviro Test Construct Thermal Imaging Infrared Sensor is a long-wave infrared（8 μm to 14 μm) camera module designed for consumer electronics. It captures infrared radiation and outputs a uniform thermal image with radiometry. Featured by compact size, low power consumption, the product is suitable for security camera, temperature measurement tools, smart home appliances and other fields. The thermal image camera module adopts a new self-developed 12 μm VO x WLP detector and is equipped with an ASIC processing chip independently developed by Infirmary®, featuring extremely small size, lighter weight, and lower power consumption. This has a size of 0.82 in x 0.82 in x 0.82 in (21mm × 21 mm x 21mm), which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.
Features
- Focus on the consumer thermal imaging market
- 12 μm VOx long wave infrared sensor
- WLP package 256 pixels x 192 pixels
- Frame rate 25 Hz
- Excellent Optical design matching high resolution sensor
- Full array temperature data output
- ASIC for infrared imaging and radiometry
- Low power consumption
- Good performance
- Low user development difficulty
Technical Specifications
| Sensor Technology | Uncooled VOx microbolometer |
| Spectral Band | 8 μm to 14 μm |
| Frame Rate | 25 Hz |
| Pixel Pitch | 12 μm |
| Brightness Adjustment | 0 to 255 |
| Contrast Adjustment | 0 to 255 |
| Polarity | White-hot/Black-hot |
| Palette | Supported |
| Digital Zoom | 0.25 to 2.0 X continuous zoom |
| Mirroring | Vertical/Horizontal/Diagonal |
| Reticle | Show/Hide/Move |
| Image Processing | TEC-less algorithmNon-uniformity correction Digital filtering noise reduction Digital detail enhancement |
| Input Supply Voltage | Three-way: 1.8 V, 3.3 V, and 5 V |
| Typical Power Consumption | <0.35 W and <0.50 W |
| Video Output format | DVP/SPI |
| Power Supply | 5 V to 12 V |
| Power Protection | Overvoltage, undervoltage, and reverse connection protection |
| Output and Control Interface 1 | BT.656 digital video interface, I2 C control |
| Output and Control Interface 2 | USB 2.0 image output, SDK for Linux/Windows |
| Temperature Measurement | Target temperature of –4 °F to 302 °F (-20 °C to +150 °C) accuracy of ±35.6 °F (±2 °C) and ±2% of the reading (The greater shall prevail ambient temperature of -4 °F to 140 °F) (-20 °C to 60 °C) |
| Humidity | 5% RH to 95% RH, non-condensing |
| Vibration | 0.01 lb (6.06 g) random vibration, all axes |
| Shock | 0.176 lb (80 g) 4 ms, final peak sawtooth wave, three axes and six directions |
| Dimension | 0.82 in x 0.82 in x 0.82 in (21 mm × 21 mm x 21mm) |
| Weight | 0.02 lb (10 g) |
