Overview

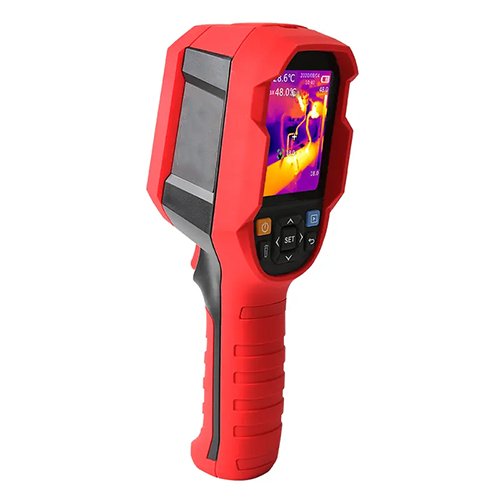

Enviro Test Construct thermal Imager is an infrared thermal imager combining surface temperature measurement and real-time thermal image, which is clearly displayed on the screen through the thermal imager. It is easier to find abnormal temperature points. It has built-in high brightness lamps and adopts a new generation of sensor modules to ensure excellent infrared resolution and rich color board modes.
Features
- Image model: thermal, visible, blending, PiP
- Central point temperature measurement
- High and low temperature tracking with key area temperature measurement (ROI).
- PC analysis software, real-time image transmission.
- LED fill light, LED alarm.
Technical Specifications
| IR resolution | 256 pixels × 192 pixels |
| Screen Display | 2.8 in LCD |
| Field of view (FOV) | 56° × 42° |
| Focus | Focus free |
| Frame rate | 25 Hz |
| Measurement accuracy | 35 °F (±2 ℃) or ±2% whichever is greater |
| Battery operating time | 6 hrs |
| Palettes | 7 |
| Emissivity | Adjustable (0.01 to 0.99) |
| Measurement presets | Point × 3 |
| Digital camera | 648 x 488 pixels |
| Image Model | Thermal, visible, blending, PiP |
| Storage | 16 G Micro SD Card |
| PC software | Analysis, Real-time display |
| Protection | IP 65 / 2 m |
| Communication interface | Type-C |
| Product net size | 9.29 in x 2.97 in x 3.39 in (236 mm × 75.5 mm × 86 mm) |
| Product net weight | 2.00 lb (910 g) |
