Overview

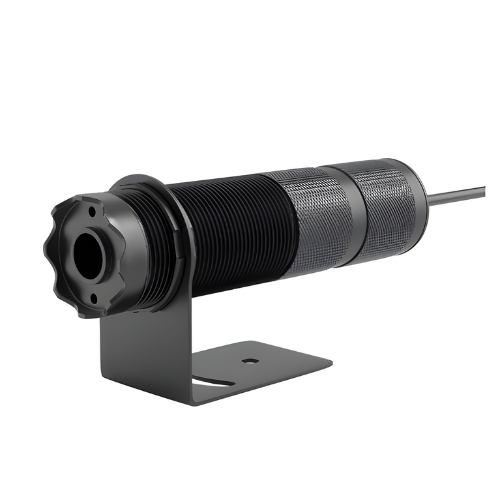

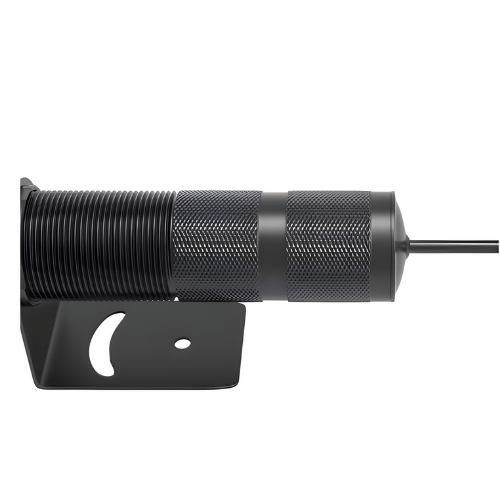

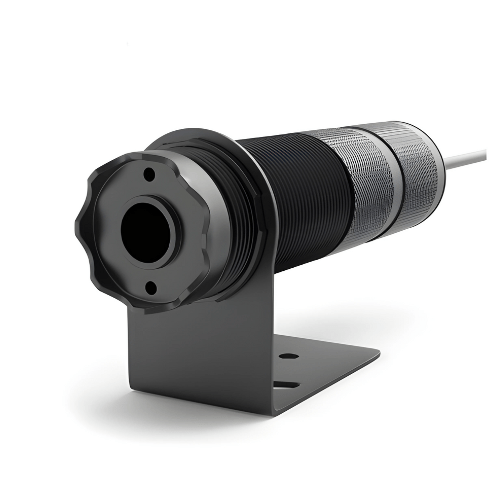

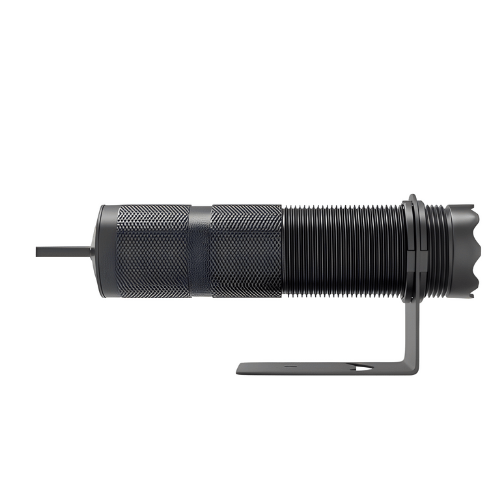

Enviro Test Construct temperature optical pyrometer infrared temperature sensor As an integrated transmitter infrared thermometer, BYD-FX0A have the integration of the sensor, the optical system and the electronic circuit inside its stainless steel or aluminium alloy shell. It can be installed very conveniently by making the standard screw thread on the product be joined with the installation position.
Features
- High precision
- High optical resolution ratio
- Firm metal shell
- Temperature range is optional
- Optimum test distance
Technical Specifications
| Spectral Response | 8 ums to 14 ums |
| Distance Spot Ratio (D:S) | 50:1 |
| Response Time | 500 ms |
| Accuracy | 212 °F (≥100 ºC) ±2% |
| Repeatability | ±1% or 30.2 °F to 33.8 °F (±1 ºC) |
| Emissivity | 0.95 fixed |
| Power | DC 9 V to 24 V |
| Maximum Current | 50 mA |
| Analog Output | RT-A 4 mA to 20 mA |
| Isolation | Power, digital output, and analogue output are isolated and do not interfere with each other. |
| Protection Level | IP65 |
| Relative Humidity | 10% to 95% |
| Shell Material | Aluminium Alloy |
| Standard Wire Length | 400 cm (4 m) (or customizable) |
| Environmental Temperature | 32 °F to 122 °F (0 ºC to 50 ºC) |
| Storage Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Temperature Range | -58 ºF to 572 ºF (-50 ºC to 300 ºC) |
| Size | 10.23 in × 5.90 in × 7.08 in (260 mm × 150 mm × 180 mm) |
| Weight | 13.22 lb (6 kg) |
