Overview

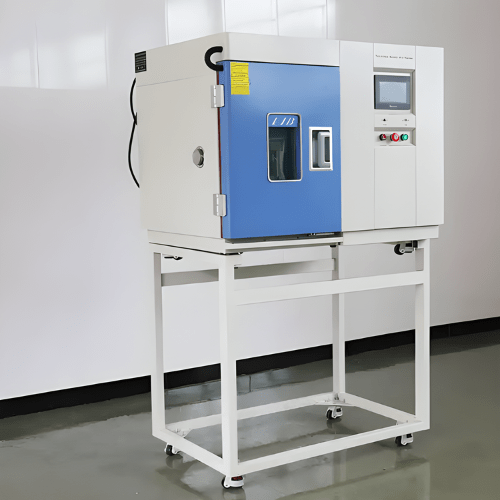

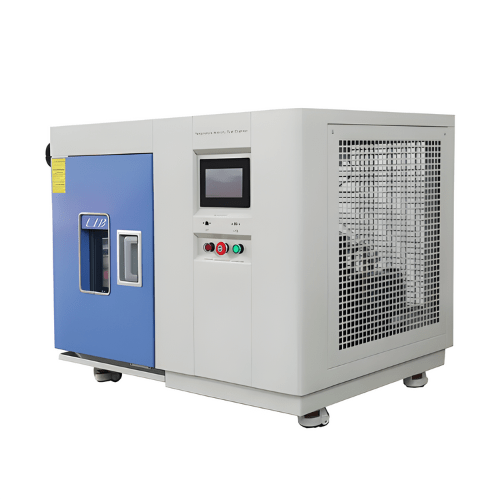

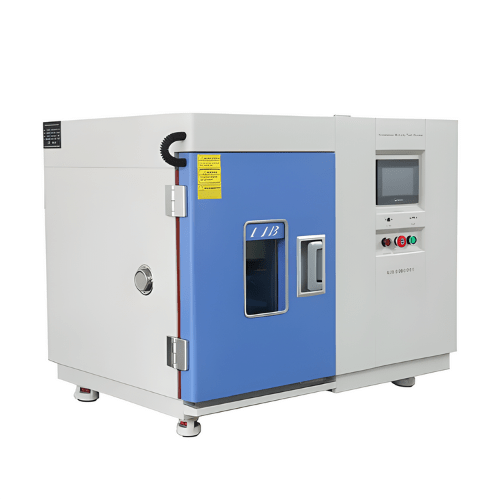

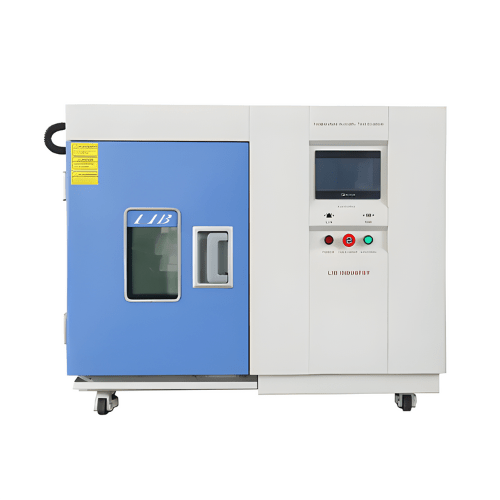

Enviro Test Construct temperature calibrator thermostatic device is Small, bench-top test chamber for simulating temperature and humidity environments. Included only temperature, temperature and humidity test chambers. Widely used in electronics, automotive, manufacturing, research and laboratories. Its very good advantages are small, desktop, small footprint, portable, stable performance and Full function. A Benchtop Environmental Chamber offers flexibility, uniformity, and control accuracy. Small & Affordable.
Features
- quick delivery or in stock
- Free calibration
- Small design & Affordable (50 L, 80 L)
- Testing small test pieces, can be powered
Technical Specifications
| Heat load | 1000 W |
| Refrigerant | R404 A, R23 |
| Heating Element | Nichrome heater |
| Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link |
| Humidifier | External isolation, stainless steel surface evaporation humidifier |
| Dehumidification | Evaporator |
| Temperature Sensor | PTR Platinum Resistance PT 100 Ω or MV A-class, accuracy 32.001 °F (0.001 ℃) |
| Humidity Sensor | Dry and wet bulb sensor |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS 304 stainless steel |
| Standard Configuration | 1 Cable hole (Φ 50,) with plug 2 shelves |
| Interior Volume | 50 L to 80 L |
| Power Supply | 220 V 50 Hz or 380 V 50 Hz |
| Maximum Noise | 65 dBA |
| Humidity Range | 20% RH to 98% RH |
| Humidity Deviation | ±2.5% RH |
| Temperature Range | -4 °F to 302 °F (-20 ℃ to +150 ℃) -40 °F to 302 °F (-40 ℃ to +150 ℃) -94 °F to 302 °F (-70 ℃ to +150 ℃) |
| Temperature Fluctuation | 31.1 °F to 32.9 °F (±0.5 ℃) |
| Temperature Deviation | 28.4 °F to 35.6 °F (±2.0 ℃) |
| Cooling Rate | 33.8 °F (1 ℃) / min |
| Heating Rate | 37.4 °F (3 ℃) / min |
| Internal Dimension (mm) | 12.59 in x 13.77 in x 17.71 in (320 mm x 350 mm x 450 mm)15.74 in x 15.74 in x 19.68 in (400 mm x 400 mm x 500 mm) |
| Overall Dimension (mm) | 31.49 in x 41.33 in x 37.40 in (800 mm x1050 mm x 950 mm) 35.43 in x 43.30 in x 39.37 in (900 mm x 1100 mm x 1000 mm) |
