Features
- Temperature calibrator
- Circuit on-off measurement, with backlight
- High Accuracy 0.02 %
- Output Display with 6 digits
- Auto power off
- Internal temperature compensation sensor
Technical Specifications
| Insulation | DC 500 V or 50 MΩ |
| EMC | EN 61326 to 1,2006 |
| Display | Double display, Large LCD |
| Power supply | 4 × 1.5 V AAA alkaline battery |
| DC mV | -10 mV to 100 mV |
| DC V | -0.1 V to 1 V |
| Resistance | 0 KΩ to 4KΩ |
| Thermocouple | 10 types (R or S or K or E or J or T or B or N or L or U) |
| RTD | 6 types (Pt 100 or Pt 200 or Pt 500 or Pt 1000 or Cu 10 or Cu 50) |
| DC mV | -5 mV to 550 mV |
| Resistance | 0 KΩ to 5.5 KΩ |
| Thermocouple | 10 types (R or S or K or E or J or T or B or N or L or U) |
| RTD | 6 types (Pt 100 or Pt 200 or Pt 500 or Pt 1000 or Cu 10 or Cu 50) |
| Continuity | 0 Ω to 500 Ω |

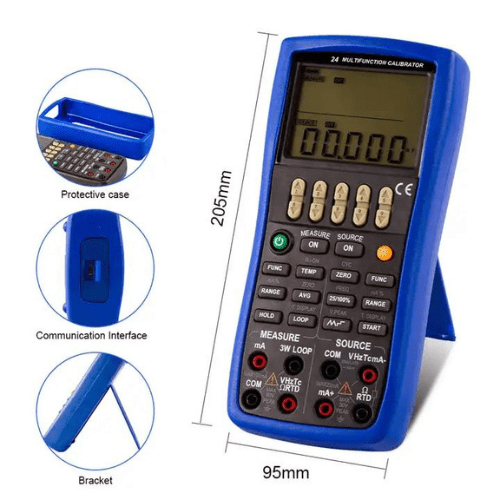

| Product Size
| 8.08 in x 3.74 in x 1.53 in (205 mm x 95 mm x 42 mm) |
| Weight | 1.1 lb (500 g)
|
