Overview

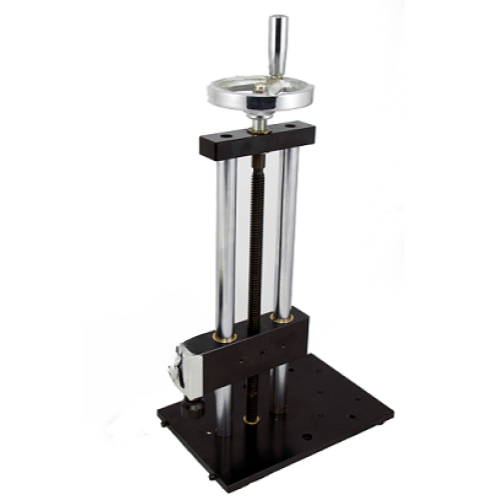

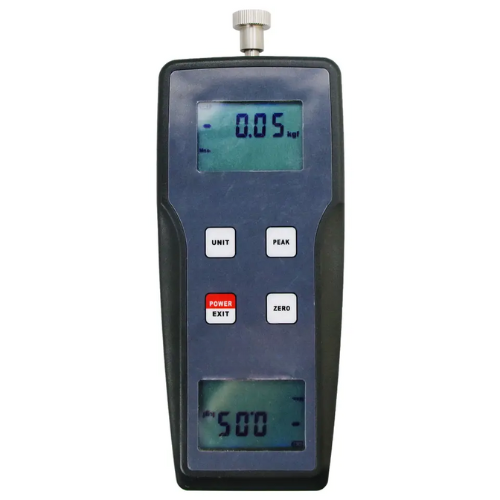

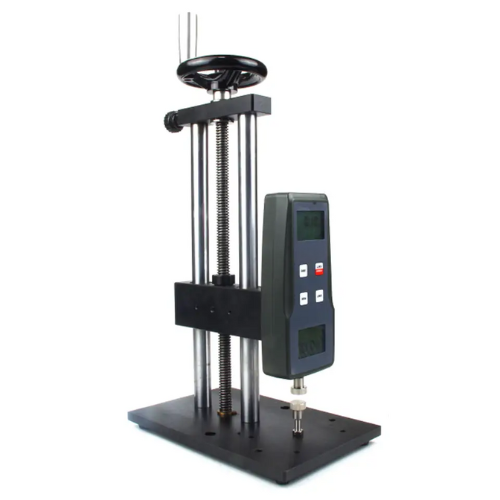

Enviro Test Construct tablet hardness tester digital hardness meter is a digital display tablet hardness tester designed and developed by our company. It has the advantages of high precision, easy operation and convenient carrying. The scientific use test range is 10% to 100% of the full scale. The metrology department recommends not to use less than 1% of the full scale. At the same time, after the instrument and the object to be tested are in place before the test, press the ZERO(ZERO) key to clear the ZERO to eliminate the weight of the fixture.
Features
- High precision and high resolution
- Digital display, ignore the difference
- Peak hold function. Maintain peak display until manually reset
- Can be powered by alkaline batteries; Can also be connected to 5 V DC power supply
Technical Specifications
| Test scope | 0 Kgf to 20K gf,0 N to 196 N, 0F to 4426 F |
| The resolution | 0.01 Kgf, 0.1 N, 0.0126 F |
| Diameter of the test range | 0.59 in (15 mm) |
| Precision | ±0.5%FS (range) + 1 digital peak |
| Unit | kgf, gf, N, Lbf |
| Can be measured value | Peak, instantaneous value. |
| According to | Four big liquid crystal, the direction, double screen |
| Backlight | Backlight |
| Allow the load | 150 % F.s (super 110% E.s, beeping alarm) |
| The power supply | Section 2 battery 5 V or 5 V DC power supply |
| Working humidity | <80% |
| The work environmet | Around the source and the corrosive medium |
| Working temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Size | 8.30 in x 3.14 in x 1.41 in (211 mm x 80 mm x 36 mm) |
| Turnning | 0.85 lb (390 g) |
