Overview

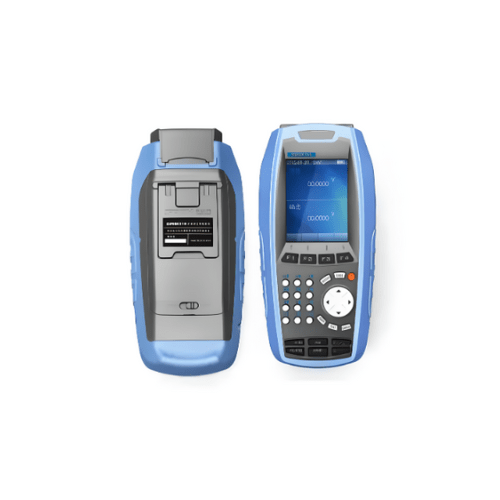

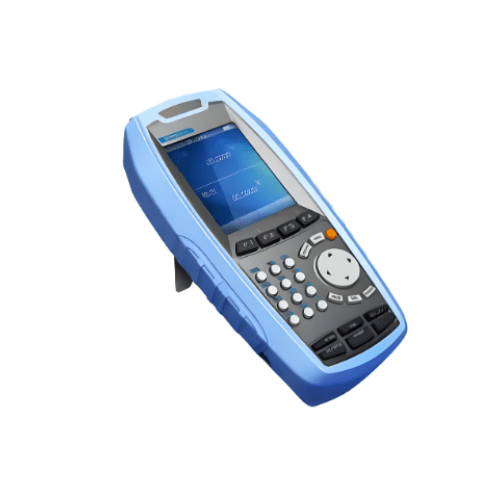

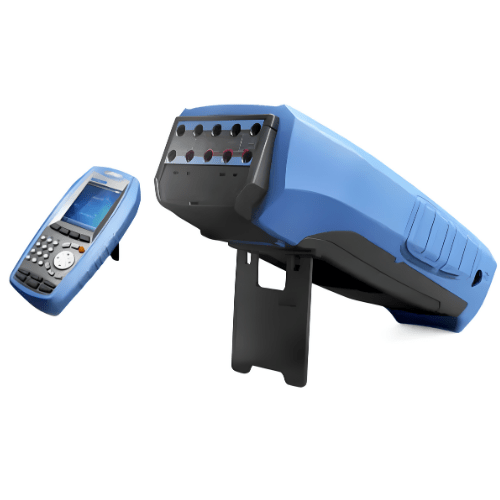

Enviro Test Construct supply best loop temperature process calibrator is a process tool for measuring, sourcing, and simulating loop current, loop integrity, and perform switch testing. Its smart phone-like menu and interface makes it simple and easy to use. Is an idea for calibrating, maintaining, and troubleshooting various loop devices in the field
Features
- Measuring loop current
- Sourcing loop current, mV and V independently
- Documenting storage
- And qutomated procedure capability
- Easy to operate
Technical Specifications
| Current | Measure range (-30 mA to 30 mA), (0 mA to 22 mA),Accuracy ± (0.01% RD +0.005% F.S) ± (0.02% RD +0.005% F.S) Resolution 0.1uA , 0.1uA |
| Voltage | Measure range (-60 V to 60 V) (0 V to 12 V) Accuracy ± (0.01% RD +0.005% F.S) ± (0.02% RD +0.005% F.S) Resolution 0.1mV , 0.1mV |
| Loop Continuity | Measure range (0.0 Ω to2000 Ω) Accuracy ± (0.02% RD +0.005% F.S) |
| Limit Switch | If the switch has detective voltage, its range is +3 V to +24 V |
| DC24V | Measure range 24 V to ±0.5 V Accuracy ±0.5 V |
| Weight | 3.30 lb (1.5 kg) |
