Overview

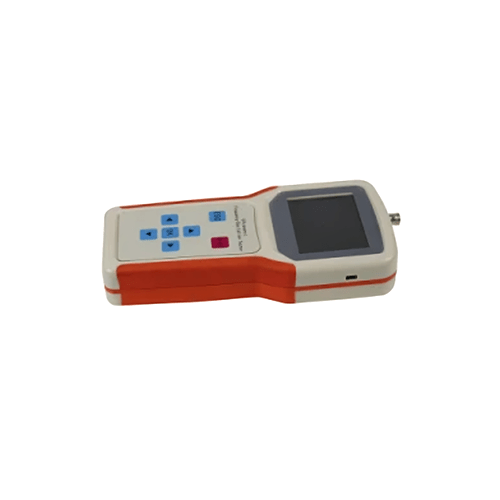

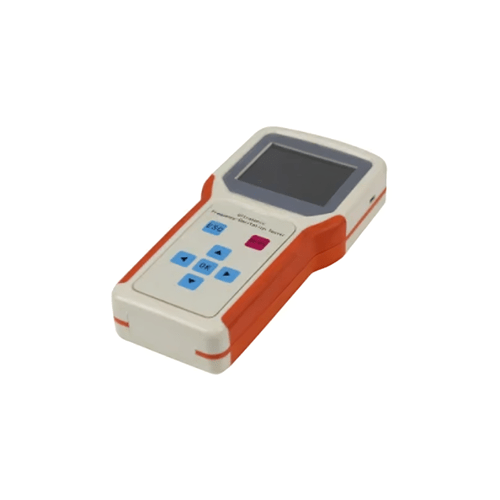

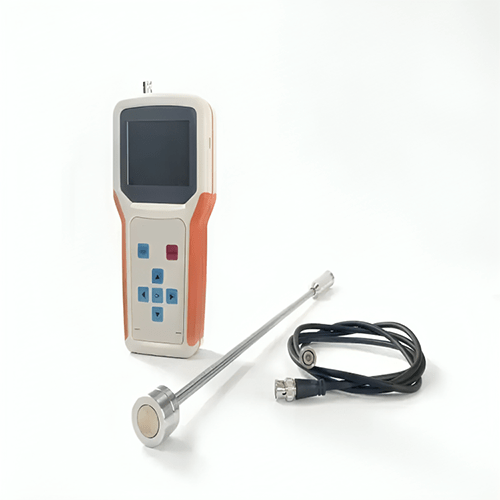

Enviro Test Construct sound intensity measuring instrument meter is one of the most important indexes of ultrasonic system, it has a direct influence on the cleaning effect of the cleaning machine and the working efficiency of the ultrasonic processor and the sound intensity measuring instrument can measure the intensity of sound field quickly and conveniently at any time and place, and give the value of sound power intuitively
Features
- This instrument is simple to use and accurate in measurement
- Frequency measurement above 200I series
- It has intelligent gear setting mode without manual selection
- Real time power detection to remind users in time
- Power saving modeand long working time
Technical Specifications
| Measuring Range | 0.01 w/cm² to 25.4 w/cm² |
| Resolution Ratio | 1% |
| Frequency Range | 10 KHz to 99.9 KHz |
| Storage GRoups | 9 groups |
| Storage Interval | Fixed value |
| Display Mode | 3.2 in TFT (320 × 240) |
| Power Supply | 3.7 V × 2 Li on rechargeable |
| Operation Mode | Membrane button |
| Probe Length | 0.5 m stainless steel probe + 0.5 m cable |
| Fluid Temperature | 32 °F to 275 °F (0 ℃ to 135 ℃) |
