Overview

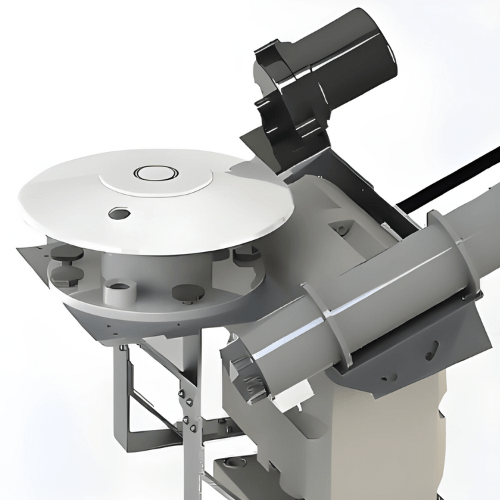

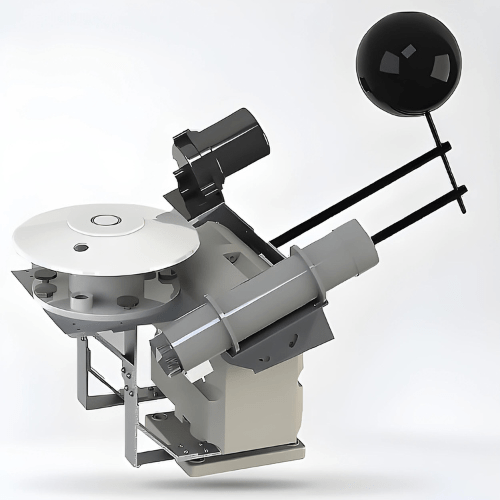

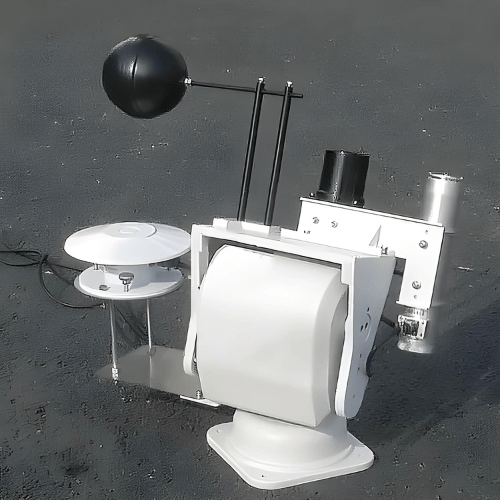

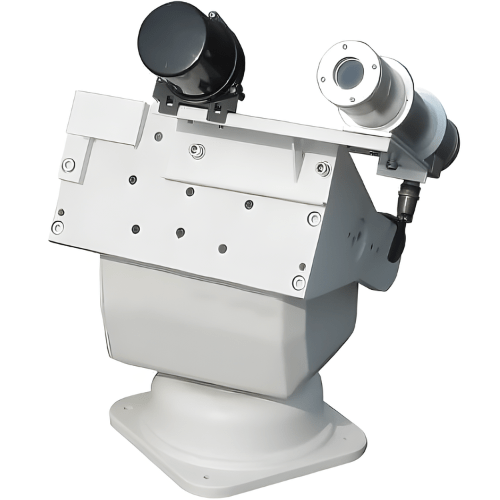

Enviro Test ConstructSolar radiation meter can be used as a primary standard direct radiation meter. Suitable for all kinds of harsh environments. Fast response and accurate automatic tracking. The tracking modes of the Solar Tracking System are sensor tracking and sun tracking. Sensor tracking mode is a real-time sampling by photoelectric converter, computer analysis and comparison of changes in solar light intensity, thus driving the mechanical mechanism to achieve solar tracking mode. Direct radiation tracking is more accurate.The direct radiometer is a first-class standard radiometer for measuring the radiation perpendicular to the sun’s surface.
Specifications
| Spectral range | 300 nm to 3000 nm |
| Measuring range | 0 W/m2 to 2000 W/m2 |
| Sensitivity | 7 μV/W.m-2 to 14 μV/W.m-2 |
| Tracking accuracy | < 168h ± 1° |
| Time constant | less than 15 S (99 %) |
| Open angle | 4 degrees |
| Annual stability | + 1 % (sensitivity rate) |
| Internal resistance | about 80 ohms |
| Power supply mode | DC 12 V (for automatic tracking device) |
| Output signal | 0 mV to 20 mV (with DL-2 standard current transmitter can output 4 to 20 mA) |
| Measurement accuracy | worksheet < 5 % |
| standard table | < 2 % |
| Length of instrument | Standard: 2 meters. Other |
| Working environment | 113 °F to 113 °F (45 ℃ to 45 ℃), humidity < 100 % RH |
| cable grade | Rated voltage: 300 V, temperature grade: 176 °F (80 ℃) |
| Product power consumption | 50 mW |
| product weight | 11.02 lb (5 kg) |
