Overview

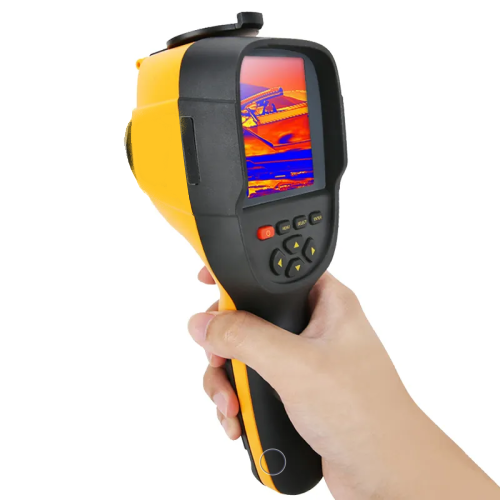

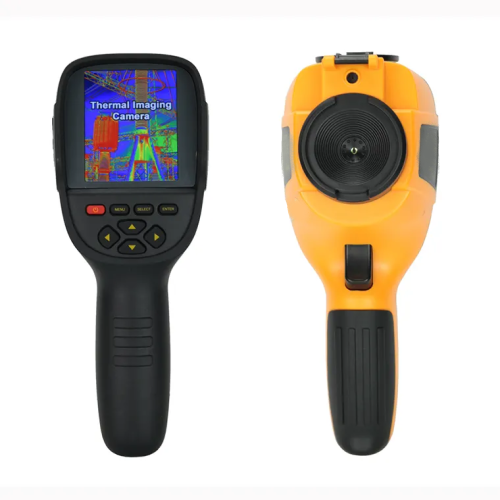

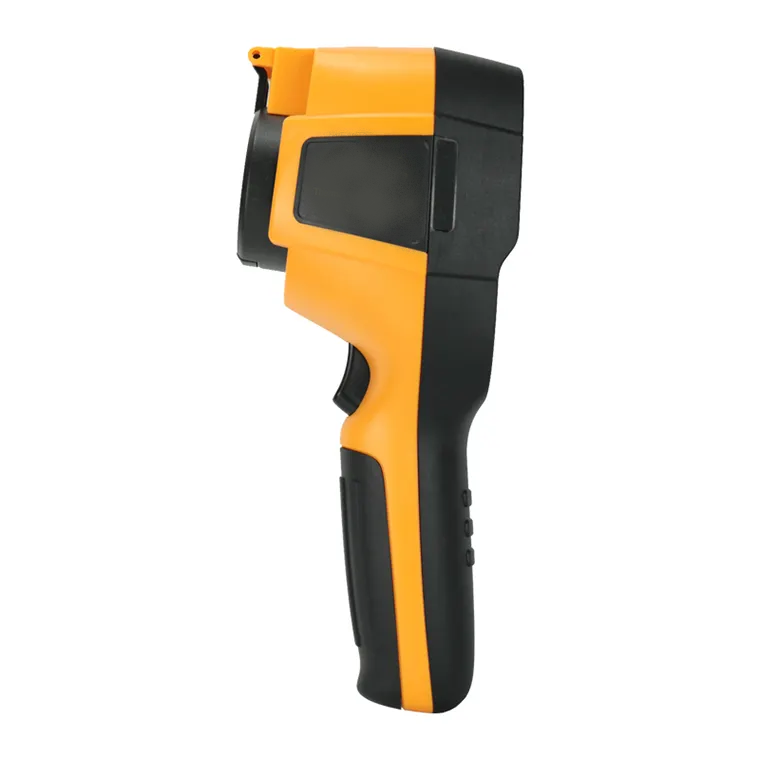

Enviro Test Construct smart thermal imaging camera is a highly sensitive sensor that automatically tracks high and low temperatures. In addition, it has a USB interface for recharging and connects to your computer to view and export pictures.
Features
- Highly sensitive temperature sensor
- USB interface
- Rechargeable battery
- 5 color imaging modes
- Cold / Hot spot automatic tracking
- Rainbow, iron oxide red, cold color, black and white
- White and black color palettes
- Built-in 3 GB storage medium
- Fixed focus mode
- Micro USB 2.0

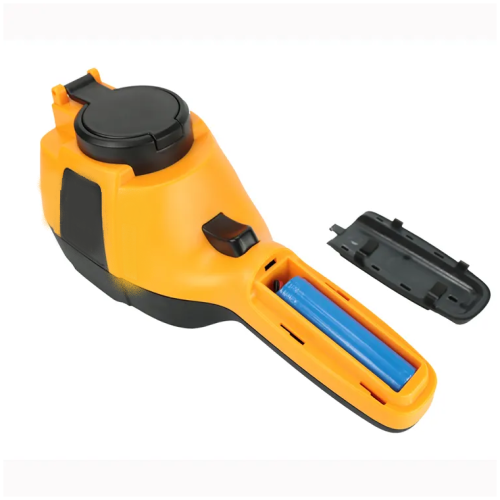

- Built-in rechargeable battery
Technical Specification
| Display Screen | 3.2 in full angle TFT display screen |
| Infrared Image Resolution | 200 pixels x 160 pixels |
| Visible Image Resolution | 300,000 pixels |
| Field Angle | 27 ° × 35 ° |
| shortest Focus Length | 196.85 in (50 cm) |
| Thermal Sensitivity | 32.12 °F (0.07 °C) |
| Temperature Measurement Range | -13 °F to 842 °F (-25 °C to 450 °C) |
| Measurement Accuracy | ±2% /±35.6 °F (±2 °C) |
| Emissivity | Adjustable from 0.01 to 1.0 |
| Frame Rate of Thermal Images | 9 Hz |
| Wavelength Coverage | 8 µm to 14 µm |
| File Format | JPG |
| Automatic Power-Off | Selectable: 5 minutes / 20 minutes / not power off automatically |
| Relative Humidity | <85% RH |
| Working Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Size | 35.43 in x 41.33 in x 87.79 in (90 mm × 105 mm × 223 mm) |
| Weight | 0.85 lb (389 g) |
