Overview

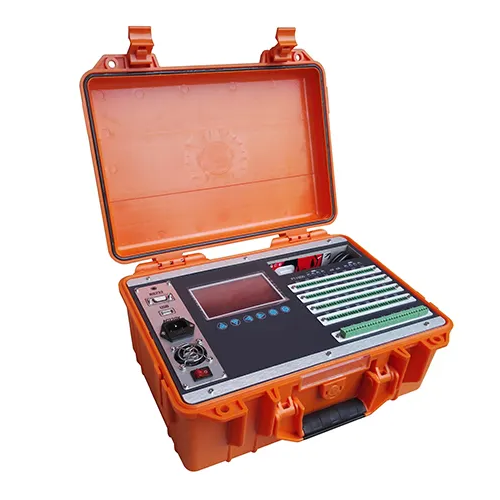

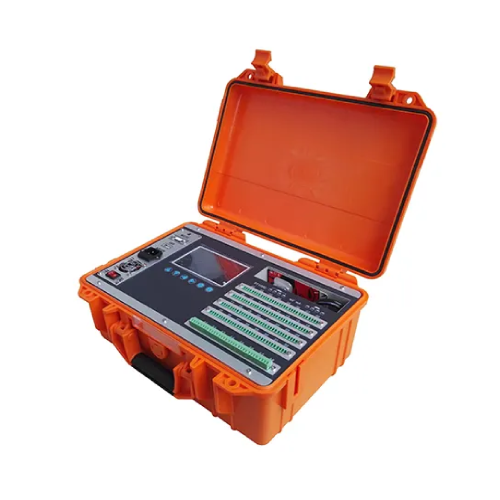

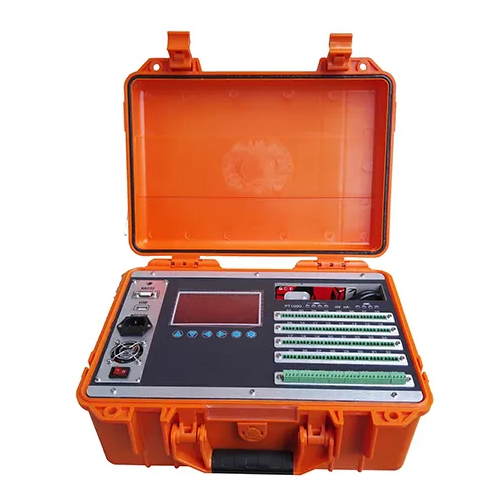

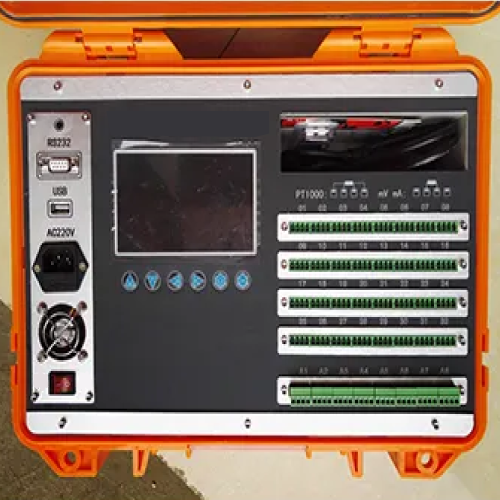

Enviro Test Constructs Smart thermal conductivity tester serves as a valuable tool for conducting on-site assessments of energy-efficient buildings. It operates by directly measuring crucial parameters such as internal surface temperature, air temperature, and heat flux density within the building envelope to determine the heat transfer coefficient. Its versatility makes it applicable across various settings, including construction quality inspection departments and quality assessment in building insulation material production units, facilitating comprehensive evaluations of energy-saving structures and materials.
Features
- Accurate, user-friendly, spacious, fast, auto controlled
- Hot box uses advanced PID for stable control
- RS-232 data collection, LCD display for ease
- Wide temp range, precise control
- High sensor resolution, PID control
- Accurate within 18 °F (0.1 °C), versatile power measurement
- Powerful 3.5 KW, reliable real-time clock
Technical Specifications
| Temperature Measurement Range | -22 °F to 176 °F (-30 °C to 80 °C) |
| Temperature Sensor Resolution | 0.0625 °F (0.035 °C) |
| Hot Box Control | PID Self-Tuning |
| Hot Box Temperature Control Accuracy | ±0.18 °F (±0.1 °C) |
| Power Measurement Range | 0 W to 200 W |
| Power Measurement Error | 1% of Full Scale (1% Fs) |
| Data Recording Time Interval | 10 minutes (adjustable) |
| Real-Time Clock Accuracy | 1 min per month |
| Control Equipment Operating Temperature | 32 °F to 122 °F (0°C to 50°C) |
| Working Power | 220 V to 3.5 KW |
| Weight | 3.64 lb (1650 g) |
| Dimensions | 2.36 in x 10.08 in (60 mm x 256 mm) |
