Overview

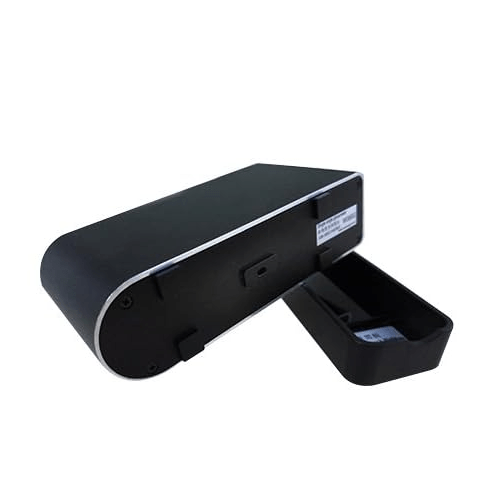

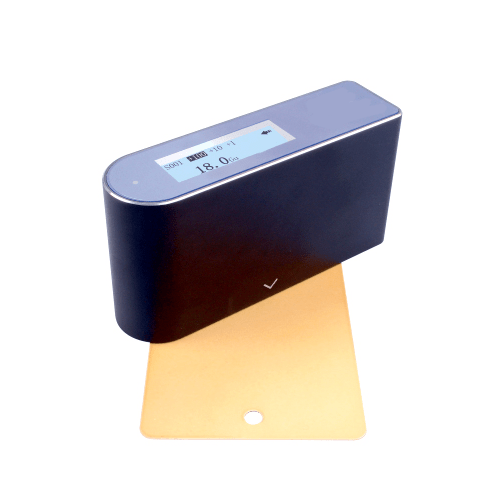

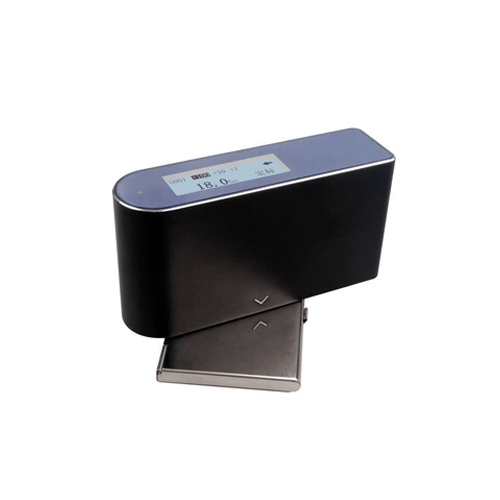

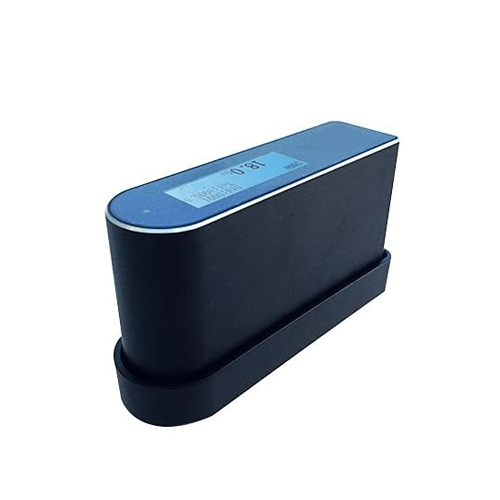

Enviro Test Construct small aperture gloss meter gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on Non-metallic materials like coatings, plastic, printing ink, paint, wood, marble, granite, polishing brick, porcelain, paper, stoving varnish and vitrified polished etc. Metal materials (High gloss materials) like Iron, electroplating, anodizing, copper, stainless, mirror etc.
Features
- High accurate and consistent capacity
- Automatic measure, Statistical Mode, Tolerance determination
- Humanized design, good man-machine communication interface
- Store 500 groups records
- PC software support, can output many kinds of format of report, data transmission etc
Technical Description
| Measurement range | 0 GU to 2000 GU |
| Projection Angle | 60° |
| Standard sample setting | Manually setting / bring out stored data for setting/ manually setting tolerance |
| Language | English |
| Division Value | 0.1 GU |
| National Standard 60° | GB 9754 / GB 9966 / GB 8807, GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 |
| Working temperature | 50 °F to 104 °F (10 °C to 40 °C) |
| Storage temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Humidity range | Relative humidity less than 85% without condensation |
| Volume | 4.8 in x 1.3 in 2.4 in (122 mm x 34 mm x 60 mm) / 6.3 in x 1.9 in x 2.8 in (159 mm x 49 mm x 72 mm) |
| Weight | 0.68 lb (310 g) / 1.1 lb (500 g) |
