Overview

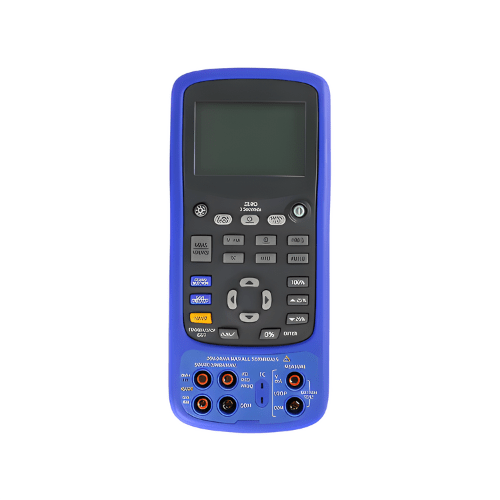

Enviro Test Construct resistance handheld process calibrator is well designed and suitable for process industries focusing on wide workloads and calibration capabilities. It can measure and simulate almost all process parameters with high precision, and accurately calibrate them. It is also suitable for higher metrology requirements.
Features
- Accurately measure and stimulate output performance
- Wide measurement range and output capacity
- Two independent channels
- Allows simultaneous measurement
- Output and simulate signals for transmitter calibration
- Use synchronized pressure measurements
- Use auto step and auto ramp functions to perform linearity tests
- Use 24 V loop power to power the transmitter
Technical Specifications
| Voltage | 0 mV to 100 mV 0 mV to 20 mV 0 V to 30 V |
| Current | 0 mA to 24 mA |
| Voltage (TC) | -10 mV to 75 mV |
| Resistance | 400 Ω to 4000 Ω |
| Frequency | 2 cpm to 1000 cpm 1 Hz to 1000 Hz 1 kHz to 15 kHz |
| Use Time | 30 hrs |
| Power | 5 AA alkaline batteries |
| Loop power function | 24 V |
| Pulse output | 0 to 10000 |
| Pulse measurement | 0 to 100000 |
| Size | 8.18 in x 3.74 in x 1.77 in (208 mm x 95 mm x 45 mm) |
| Weight | 1.34 lb (610 g) |
