Overview

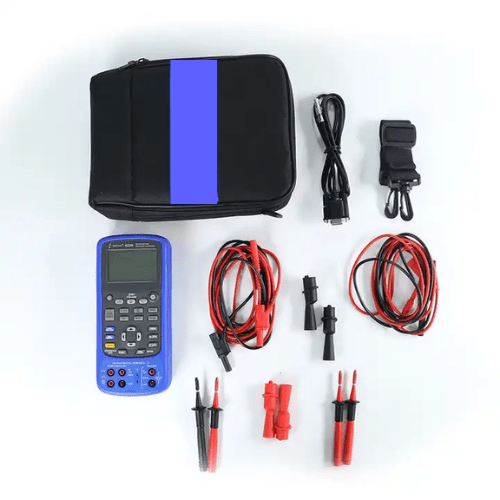

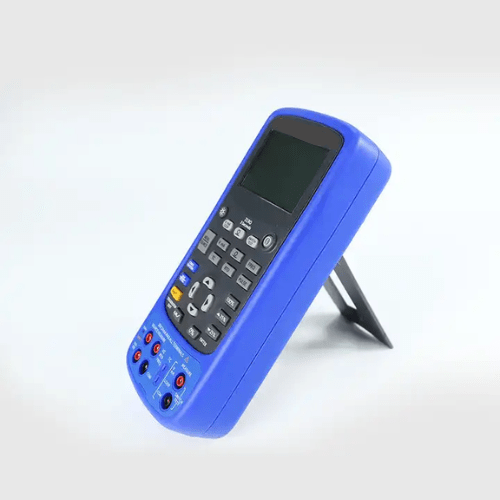

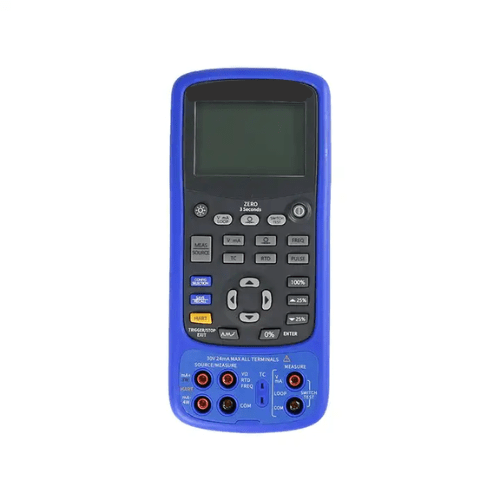

Enviro Test Construct resistance handheld multifunction process calibrator is well designed and is suitable for process industries that focuses on wide workloads and calibration capabilities. It can measure and simulate almost all process parameters with high precision, and accurately calibrate almost all process parameters. It is also suitable for higher metrology requirements.
Features
- Accurately measure and stimulate output performance
- Wide measurement range and output capacity
- Two independent channels
- Allows simultaneously measure
- Output and view process signals
- Measure signals such as voltage mA, RTD
- Also, thermocouple, frequency, pulse and resistance
- Output and simulate these signals for transmitter calibration
- Use synchronized pressure measurements to output mA signals
- To perform valve and l P testing
- Use auto step and autocamp function to quick perform linearity tests
- Use 24 V loop power to power the transmitter
- HART communication function
- 232 and Bluetooth
Technical Specifications
| Voltage Measure | 0 mV to 100 mV 0.01 mV |
| Voltage Source | 0 V to 20 V 1 mV |
| Current Measure | 0 mA to 24 mA Max Load 1 mA 1 uA |
| Current Source/Simulate | 0 mA to 24 mA Max Load 10,000 1 uA |
| Current Measure | 0 V to 30 V 0.01 H + 2 uA |
| Voltage Measure | -10 mV to 75 mV Thermocouple B 0.01 mV |
| Resistance Measure | 5 Ohm to 4000 Ohms 0.01 mV |
| Resistance Source | 5 Ohm to 4000 Ohms 0.01 mV |
| Thermocouple Measure | 400 to 4000 0.1 |
| Thermal Resistance | Measure, Source 0.01 |
| Frequency Measure | 2 CPM to 1000 CPM 0.1 |
| Frequency Source | 1 Hz to 1000 Hz 0.1 |
| Voltage Measure | 1 Hz to 15 KHz 0.01 |
| Loop Power 24V Function | 10% |
| Thermocouple B | 0.1 |
| Thermal Resistance | Measure, Source 0.01 |
| Power | 5 AA alkaline batteries |
| Use Time | 30 hrs |
| Pulse Output | Frequency 2 CPM to 15 KHz |
| Size | 8.18 in x 3.74 in x 1.77 in (208 mm x 95 mm x 45 mm) |
| Weight | 1.34 lb (610 g) |
