Overview

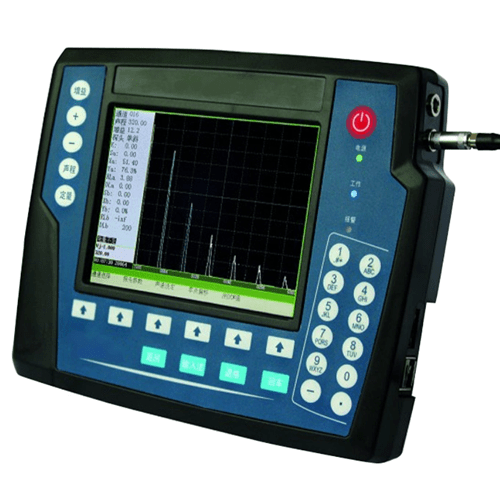

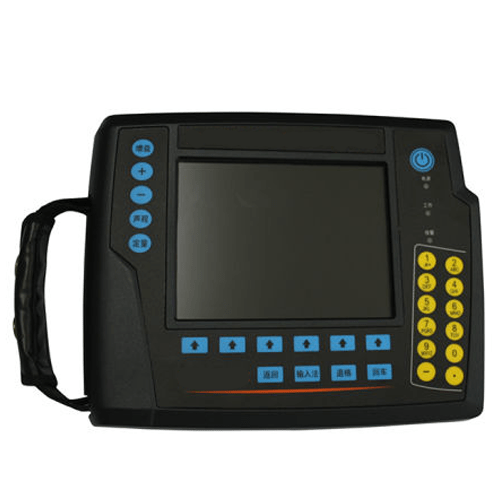

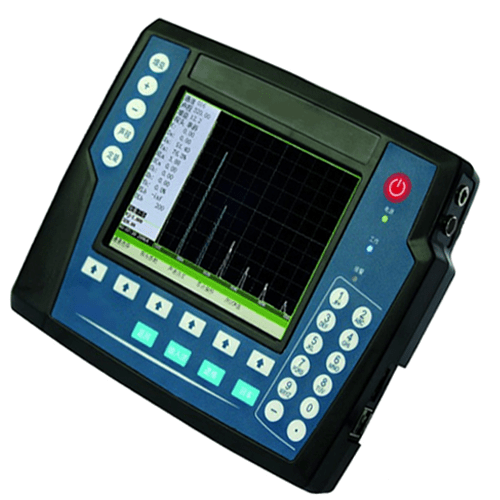

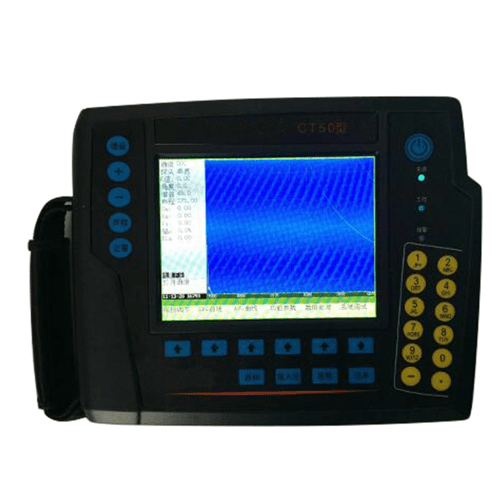

Enviro Test Construct Real-Time Curve Display Ultrasonic Flaw Detector used for detecting internal defect (crack, air hole, slag) and position, evaluation and identify. It widely used in field of Laboratory, CSEI, Shipbuilding, Oil and gas equipment, spaceflight, Chemical industry, Electric industry, Iron etc.
Technical Specifications
| Frequency range | 0.4 MHz to 20 MHz |
| Gain rang | 0 dB to 120 dB,0.1,2.0,6.0dB step |
| Dynamic range | 32 dB |
| Vertical linearly | <3% |
| Horizontal linearity | 0 within1M |
| Damp | 50/100/400 Ω |
| Inhibition | 0% to 99% linearity inhibition |
| Adapter | AC 220 V to 240 V |
